C6222-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | 22° Elbow | for 2" Hose ID

C6222-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | 22° Elbow | for 2" Hose ID

Sale price$217.31

by Kurt Hydraulics
C6222-JJ - Code 62 Flange 22 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $204.27
20–59 $184.71
60+ $162.98
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

22 Degree

Ends Configuration:
  • 2in Hose Barb
  • 2in Code 62 Flange

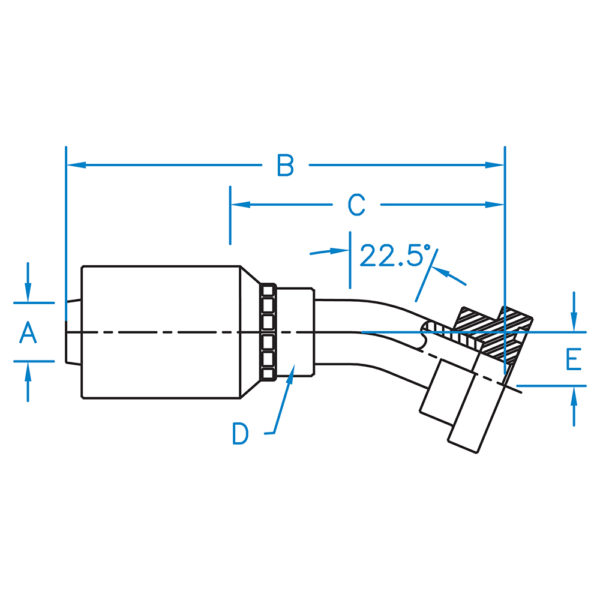

Part Number A B C D E Hose ID
(In)
C6222-20-20-JJ 1.250 6.277 3.677 1-3/4R 0.646 1-1/4"
C6222-24-32-JJ 1.500 7.580 4.590 2-1/8R 0.970 1-1/2"
C6222-32-32-JJ 2.000 9.140 5.560 2-3/4R 1.120 2.000"


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
