C62-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | for 1-1/4" Hose ID

C62-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | for 1-1/4" Hose ID

Sale price$73.36

by Kurt Hydraulics
C62-JJ - Code 62 Flange Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $68.96
40–79 $62.36
80+ $55.02
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

Straight

Ends Configuration:
  • 1-1/4in Hose Barb
  • 1-1/4in Code 62 Flange

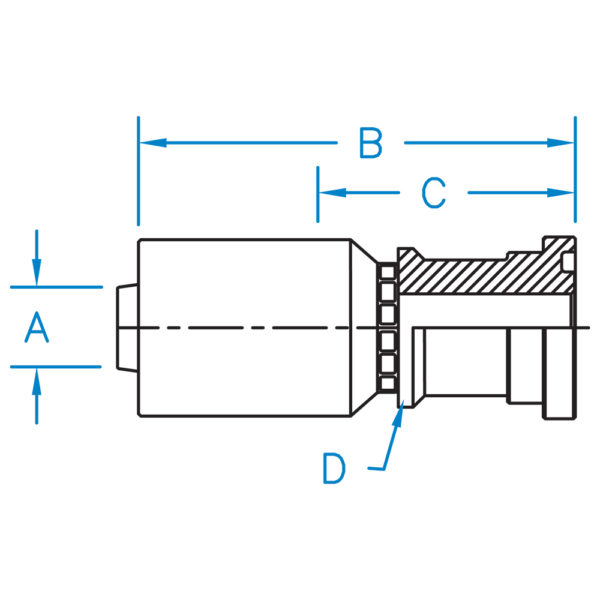

Part Number A B C D Hose ID
(In)		 Thread
C62-20-20-JJ 1.250 5.471 2.871 2-1/8R 1-1/4" N/A
C62-24-24-JJ 1.500 5.725 3.015 2-1/2R 1-1/2" N/A
C62-24-32-JJ 1.500 5.998 3.288 3-1/8R 1-1/2" N/A
C62-32-32-JJ 2.000 7.185 3.415 3-1/8R 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
