C6190L-12-12-W by Kurt Hydraulics | Code 61 Flange | 90° Long Drop Elbow | for 3/4" Hose ID

C6190L-12-12-W by Kurt Hydraulics | Code 61 Flange | 90° Long Drop Elbow | for 3/4" Hose ID

Sale price$49.72

by Kurt Hydraulics
C6190L-W - Code 61 Flange 90 deg. Long Drop Bent Tube Rigid

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $46.74
40–79 $42.26
80+ $37.29
Discounts applied in cart/checkout.

Product Data:

Series:
  • W Series
Shape:

90 Degree

Ends Configuration:
  • 3/4in Hose Barb
  • 3/4in Code 61 Flange

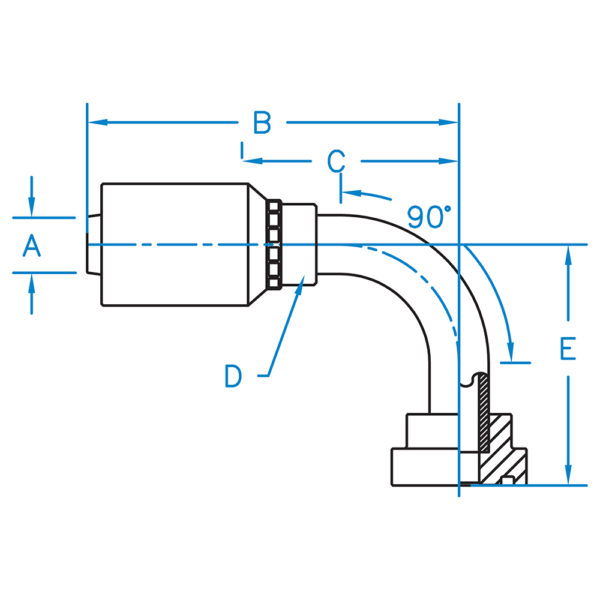

Part Number A B C D E Hose ID
(In)		 Thread
C6190L-08-12-W 0.500 3.872 2.532 1.0R 3.75 1/2" N/A
C6190L-12-12-W 0.750 4.436 2.557 1.0R 3.75 3/4" N/A
C6190L-16-16-W N/A N/A N/A N/A N/A N/A N/A
C6190L-16-20-W N/A N/A N/A N/A N/A N/A N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
