C6167-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 67° Elbow | for 1-1/2" Hose ID

C6167-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 67° Elbow | for 1-1/2" Hose ID

Sale price$89.75

by Kurt Hydraulics
C6167-JJ - Code 61 Flange 67 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $84.37
20–59 $76.29
60+ $67.31
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

67 Degree

Ends Configuration:
  • 1-1/2in Hose Barb
  • 1-1/2in Code 61 Flange

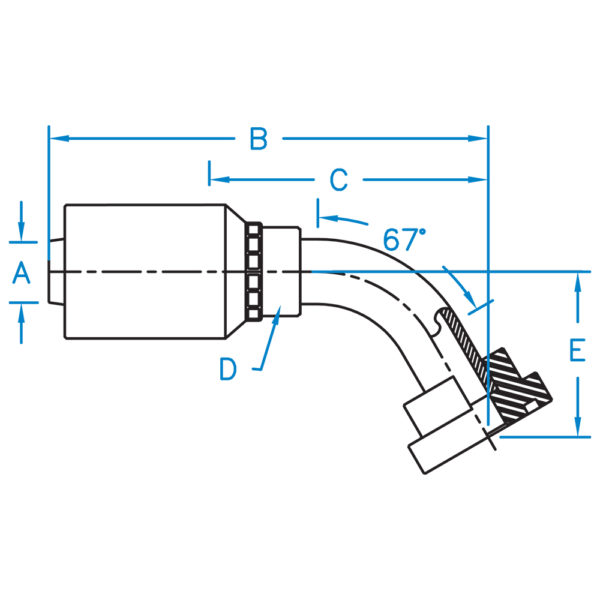

Part Number A B C D E Hose ID
(In)		 Thread
C6167-20-20-JJ 1.250 6.190 3.590 1-3/4R 2.520 1-1/4" N/A
C6167-24-24-JJ 1.500 6.940 4.230 2-1/8R 2.913 1-1/2" N/A
C6167-24-32-JJ 1.500 6.940 4.230 2-1/8R 2.913 1-1/2" N/A
C6167-32-32-JJ 2.000 N/A N/A 2-3/4R N/A 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
