C6160-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 60° Elbow | for 1-1/4" Hose ID

C6160-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 60° Elbow | for 1-1/4" Hose ID

Sale price$85.85

by Kurt Hydraulics
C6160-JJ - Code 61 Flange 60 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $80.70
20–59 $72.97
60+ $64.39
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

60 Degree

Ends Configuration:
  • 1-1/4in Hose Barb
  • 1-1/4in Code 61 Flange

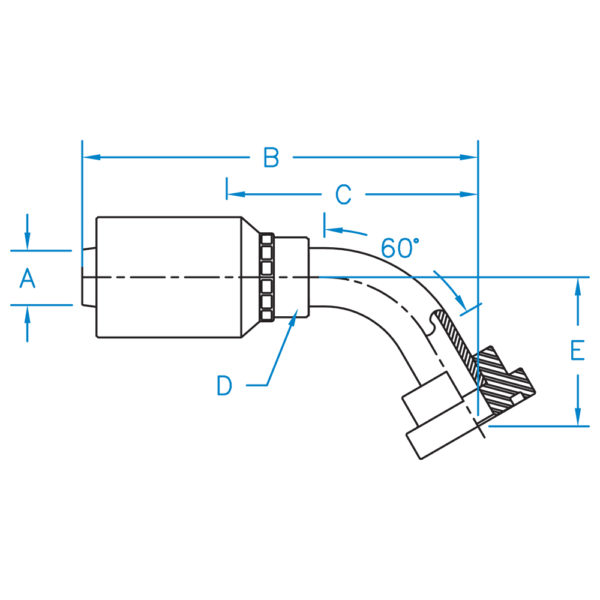

Part Number A B C D E Hose ID
(In)		 Thread
C6160-20-20-JJ 1.250 6.924 4.324 1-3/4R 1.714 1-1/4" N/A
C6160-24-24-JJ 1.500 7.59 4.95 2-1/8R 2.14 1-1/2" N/A
C6160-24-32-JJ 1.500 7.610 5.090 2-1/8R 2.320 1-1/2" N/A
C6160-32-32-JJ 2.000 9.350 5.770 2-3/4R 3.120 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
