C6145-08-08-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 1/2" Code 61 Flange | 45° Elbow | Carbon Steel

C6145-08-08-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 1/2" Code 61 Flange | 45° Elbow | Carbon Steel

Sale price$74.56

Kurt Hydraulics
C61 - Code 61 Flange 45° Bent Tube Rigid
Buy More, Save More!
Quantity Price Each
10–39 $70.09
40–79 $63.38
80+ $55.92
Discounts applied in cart/checkout.

Product Data:

Series:
  • K2 Series
Shape:

45 Degree

Ends Configuration:
  • 1/2in Hose Barb
  • 1/2in Code 61 Flange

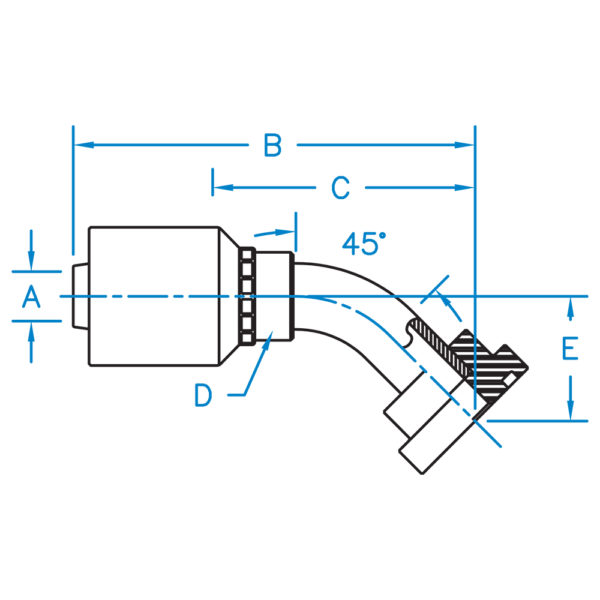

Part Number Hose I.D. (in.) B C D E Thread
C6145-08-08-K2 1/2" 3.80" 2.46" 7/8" 0.75" N/A
C6145-08-12-K2 1/2" 3.58" 2.24" 1" 0.84" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
