C6122-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 22° Elbow | for 1-1/2" Hose ID

C6122-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 22° Elbow | for 1-1/2" Hose ID

Sale price$119.77

by Kurt Hydraulics
C6122-JJ - Code 61 Flange 22 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $112.58
20–59 $101.80
60+ $89.83
Discounts applied in cart/checkout.

Product Data:

Series:
  • C6122 Series
Shape:

22 Degree

Ends Configuration:
  • 1-1/2in Hose Barb
  • 1-1/2in Code 61 Flange

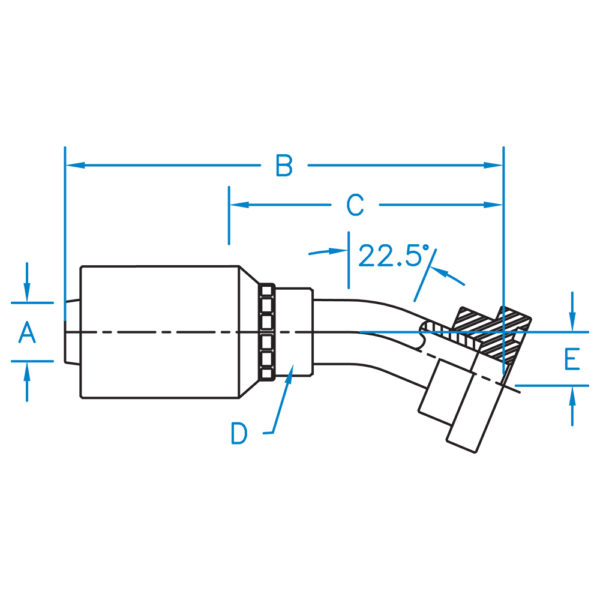

Part Number A B C D E Hose ID
(In)		 Thread
C6122-20-20-JJ 1.250 5.870 3.270 1-3/4R 0.477 1-1/4" N/A
C6122-24-24-JJ 1.500 6.898 4.188 2-4/8R 0.670 1-1/2" N/A
C6122-24-32-JJ 1.500 6.898 4.188 2-1/8R 0.676 1-1/2" N/A
C6122-32-32-JJ 2.000 8.680 4.880 2-3/4R 0.970 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
