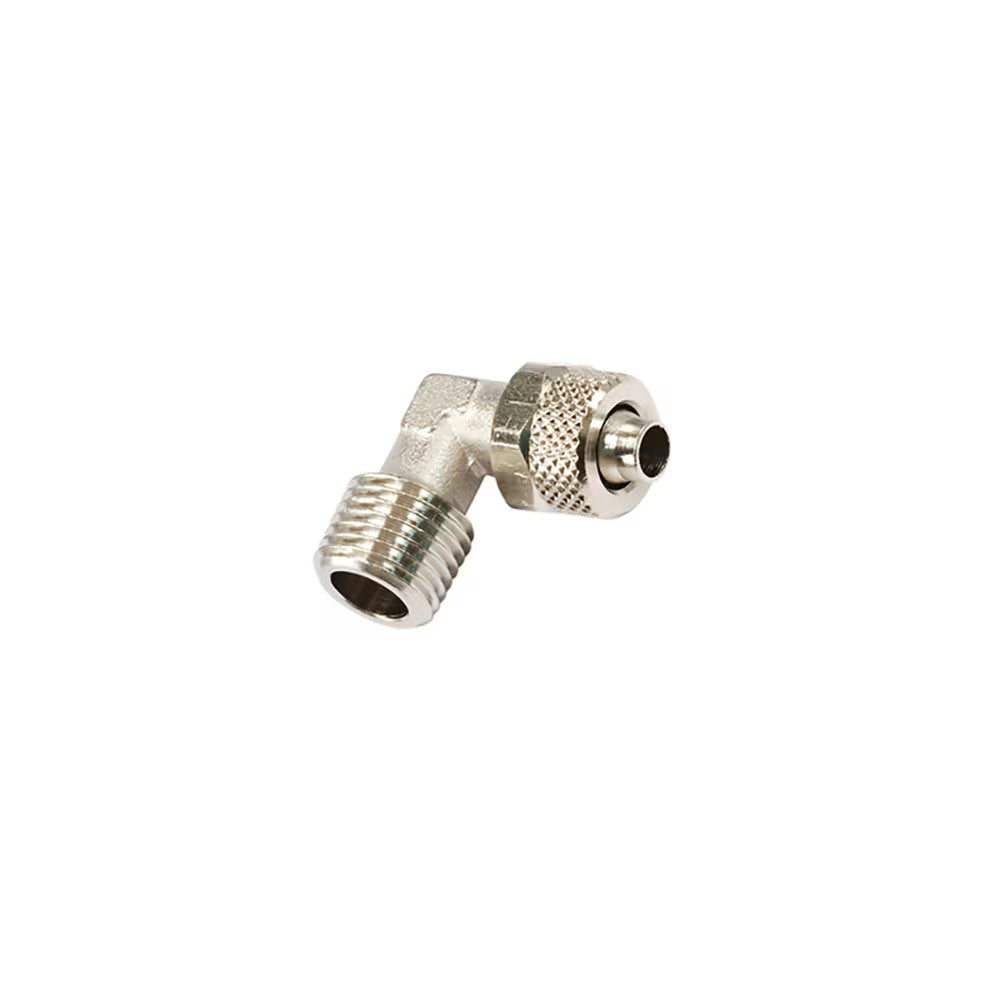

C3BPL4/6-1/4 by Parker | Legris Stud Fitting | 4x6 mm Tube OD x 1/4" Male BSPT Thread | 12 mm Hex | 90° Elbow | Nickel-Plated Brass

C3BPL4/6-1/4 by Parker | Legris Stud Fitting | 4x6 mm Tube OD x 1/4" Male BSPT Thread | 12 mm Hex | 90° Elbow | Nickel-Plated Brass

Sale price$350.80

by Parker Hannifin
Nickel-Plated Brass Spigot Fitting / Stud Fittings:C3BPL Stud Elbow, Male BSPT Thread

Package Quantity: 20 Units

Buy More, Save More!
Quantity Price Each
5–14 $329.75
15–29 $298.18
30+ $263.10
Discounts applied in cart/checkout.

Product Data:

Series:
  • C3BPL Series
Shape:

90° Elbow

Material(s):
  • Nickel-Plated Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 18 bar BPLM-M nut
    Vacuum to40 bar with BPLM nut
  • Working Temperature: -40°C to +100°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (99% vacuum).
Advantages:
  • Full flow sealing system
  • Compatible with flexible and semi-rigid tubes (polyurethane, polyamide, polyethylene, fluoropolymers, etc.)
  • Reliable direct sealing system without the use of a seal or olive
  • Nickel-plated for increased corrosion resistance
Component Materials:
  • Body: Nickel-plated brass
  • Nut: Nickel-plated brass
Part Number ØD C F H J L Kg
C3BPL4/6-1/4 4x6 mm 1/4" 12 mm 20 mm 10 mm 22.5 mm .031 Kg

Compatible with BPLM-M nut only
