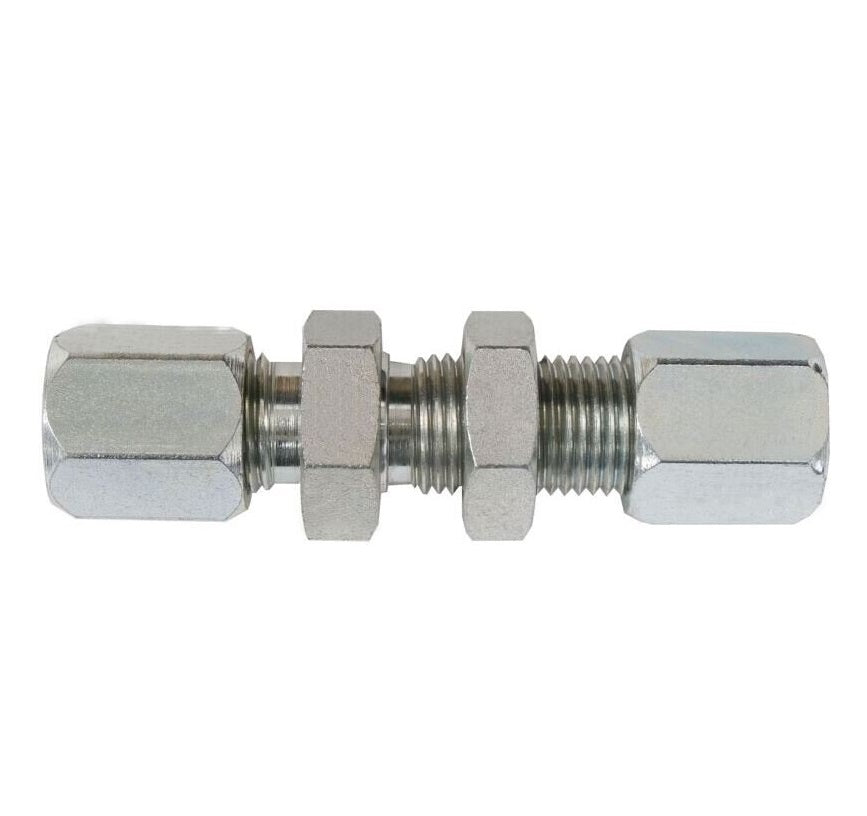

C2700-20-20 by Brennan Inc. | -20 Bite Type x -20 Bite Type Bulkhead Union | Straight | Steel
Brennan Inc.
Flareless Bite Type: C2700 - Bite Type x Bite Type Bulkhead Union Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $82.80 |
| 20–59 | $74.87 |
| 60+ | $66.06 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1Thread | A2Thread | B1Drill | B2Drill | KDepth | LLength | C1Hex | C2Hex |
| C2700-04-04 | Steel | 1/4" | 7/16-20" | 7/16-20" | 0.203" | 0.203" | 0.234" | 1.890" | 0.688" | 0.688" |
| C2700-06-06 | Steel | 3/8" | 9/16-18" | 9/16-18" | 0.281" | 0.281" | 0.250" | 1.980" | 0.813" | 0.812" |
| C2700-08-08 | Steel | 1/2" | 3/4-16" | 3/4-16" | 0.422" | 0.422" | 0.305" | 2.220" | 1.000" | 1.000" |
| C2700-12-12 | Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.656" | 0.656" | 0.350" | 2.720" | 1.375" | 1.375" |
| C2700-16-16 | Steel | 1" | 1-5/16-12" | 1-5/16-12" | 0.875" | 0.875" | 0.415" | 2.720" | 1.625" | 1.625" |
| C2700-20-20 | Steel | - | - | - | - | - | - | - | - | - |
| C2700-04-04-SS | Stainless Steel | 1/4" | 7/16-20" | 7/16-20" | 0.203" | 0.203" | 0.234" | 1.890" | 0.688" | 0.688" |
| C2700-06-06-SS | Stainless Steel | 3/8" | 9/16-18" | 9/16-18" | 0.281" | 0.281" | 0.250" | 1.980" | 0.813" | 0.812" |
| C2700-08-08-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-16" | 0.422" | 0.422" | 0.305" | 2.220" | 1.000" | 1.000" |
| C2700-10-10-SS | Stainless Steel | 5/8" | 7/8-14" | 7/8-14" | 1.450" | 36.83" | 2.480" | 62.99" | 1-1/8" | 1.125" |
| C2700-12-12-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.656" | 0.656" | 0.350" | 2.720" | 1.375" | 1.375" |
