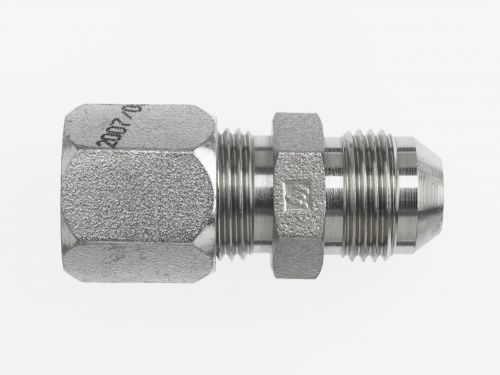

C2402-08-08-SS by Brennan Inc. | -08 Bite Type x -08 Male JIC | Straight | Stainless Steel

C2402-08-08-SS by Brennan Inc. | -08 Bite Type x -08 Male JIC | Straight | Stainless Steel

Sale price$67.67

Brennan Inc.
Flareless Bite Type: C2402 - Bite Type x Male JIC Straight
Buy More, Save More!
Quantity Price Each
10–39 $63.61
40–79 $57.52
80+ $50.75
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Tube Compression
  • 1/2in Male JIC
Material(s):
  • Stainless Steel
Part Number Material Tube O.D. B1Thread B2Thread B1Drill B2Drill LLength KDepth CHex
C2402-04-04 Steel 1/4" 7/16-20" 7/16-20" 0.203" 0.172" 1.270" 0.234" 0.500"
C2402-06-06 Steel 3/8" 9/16-18" 9/16-18" 0.281" 0.281" 1.280" 0.250" 0.625"
C2402-08-08 Steel 1/2" 3/4-16" 3/4-16" 0.422" 0.391" 1.500" 0.305" 0.812"
C2402-10-10 Steel - - - - - - - -
C2402-12-12 Steel 3/4" 1-1/16-12" 1-1/16-12" 0.656" 0.609" 1.980" 0.350" 1.125"
C2402-16-16 Steel 1" 1-5/16-12" 1-5/16-12" 0.875" 0.844" 2.040" 0.415" 1.375"
C2402-20-20 Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1.093" 1.078" 2.110" 0.415" 1.688"
C2402-24-24 Steel 1-1/2" 1-7/8-12" 1-7/8-12" 1.344" 1.312" 2.160" 0.485" 2.125"
C2402-32-32 Steel 2" 2-1/2-12" 2-1/2-12" 1.813" 1.781" 2.760" 0.485" 2.625"
C2402-04-04-SS Stainless Steel 1/4" 7/16-20" 7/16-20" 0.203" 0.172" 1.230" 0.234" 0.500"
C2402-06-06-SS Stainless Steel 3/8" 9/16-18" 9/16-18" 0.281" 0.281" 1.280" 0.250" 0.625"
C2402-08-08-SS Stainless Steel 1/2" 3/4-16" 3/4-16" 0.422" 0.391" 1.500" 0.305" 0.812"
C2402-08-12-SS Stainless Steel 1/2" 3/4-16" 1-1/16-12" 0.422" 0.609" 1.680" 0.305" 1.125"
C2402-12-12-SS Stainless Steel 3/4" 1-1/16-12" 1-1/16-12" 0.656" 0.609" 1.980" 0.350" 1.125"
C2402-16-16-SS Stainless Steel 1" 1-5/16-12" 1-5/16-12" 0.875" 0.844" 1.980" 0.415" 1.375"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
