ACC40053 C-Flex® by Saint Gobain | 3/4" ID x 1" OD x 1/8" Wall | TPE Braided Biopharm Tubing | 15' Package Length
Saint Gobain

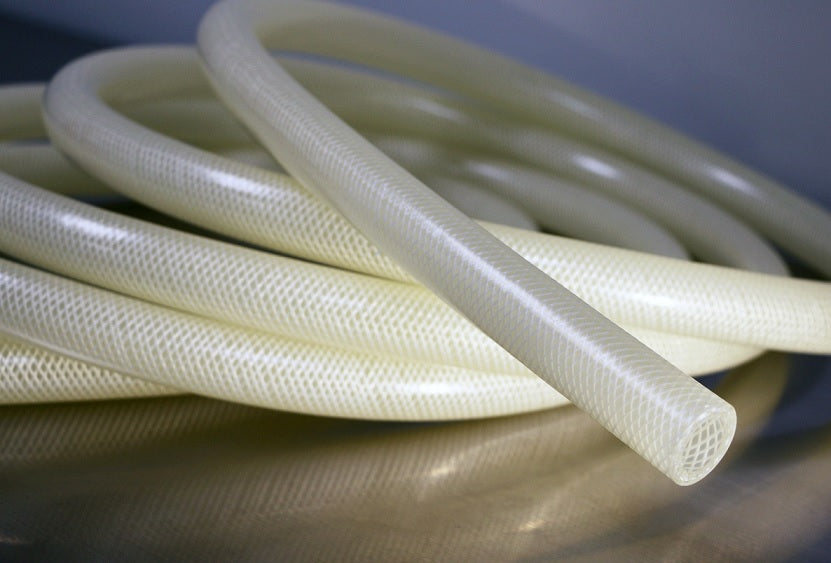

C-Flex® TPE Braided Biopharmaceutical Tubing
C-Flex® Braided tubing is specifically designed to meet the critical demands of high pressure fluid processing applications in pharmaceutical and biopharmaceutical for fluid process.
C-Flex® Braided is produced using the C-Flex® 082 translucent ADCF (Animal Derived Component Free) material formulation, a TPE material commonly approved for use in many biopharmaceutical applications. Reinforcement is provided by a polyester fiber that provides increased pressure rating and improved bend radius. It is compatible with steam sterilization and gamma-irradiation. C-Flex® Braided tubing is part of a family of TPE tubing offering the widest range of formulations and sizes in the industry including C-Flex® 082 and 374 translucent tubing for fluid flow visibility, and C-Flex® 072 opaque for peristaltic pump applications and transfer of light sensitive fluids.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $182.84 |
| 20–59 | $165.33 |
| 60+ | $145.88 |
Product Data:
SPECIFICATIONS
| Application: | Vessel and tank transfers with elevated pressure requirements, High pressure tests such as Filter Integrity Testing, Fluid transfer applications needing crush or kink-resistance | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | C-Flex 082 thermoplastic materials |
| Reinforcement: | Polyester Fiber | Cover: | N/A |
| Temperature Range: | -85°F (-67°C) to 275°F (135°C) | Crimp Fittings: | N/A |
| Specifications | C-Flex® Braided tubing is manufactured from C-Flex 082 thermoplastic materials
and tested to a variety of specifications including: USP Class VI - ISO 10993-5 (Cytotoxicity, In-Vitro) ISO 10993-3 (Ames Genotoxicity) - ISO 10993-11 (Systemic Toxicity, In-Vivo) ISO 10993-4 (Hemolysis, Indirect) - European Pharmacopeia 3.2.9 |
||
| Literature: | C-Flex® TPE Braided Biopharmaceutical Tubing (PDF) | ||
| Other Features: | |||
|
|||
| Part Number | Inside Diameter | Outside Diameter | Wall Thickness | Min. Bend Radius |
Max. Working Pressure* at 68°F / 20°C |
Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | in | mm | PSI | bar | ||
| ACC422253 | 0.125" | 3.8mm | 0.355" | 9.02mm | 0.115" | 2.92mm | 0.5" | 12.7mm | 105 PSI | 7.2 bar | 25ft |
| ACC42019 | 0.250" | 6.35mm | 0.500" | 12.70mm | 0.125" | 3.18mm | 1.5" | 38.1mm | 110 PSI | 7.6 bar | 25ft |
| ACC42029 | 0.375" | 9.53mm | 0.625" | 15.88mm | 0.125" | 3.18mm | 2.5" | 63.5mm | 80 PSI | 5.5 bar | 25ft |
| ACC40038 | 0.500" | 12.70mm | 0.750" | 19.05mm | 0.125" | 3.18mm | 3.5" | 88.9mm | 105 PSI | 7.2 bar | 15ft |
| ACC40048 | 0.625" | 15.88mm | 1.000" | 25.40mm | 0.187" | 4.75mm | 4" | 101.6mm | 110 PSI | 7.6 bar | 15ft |
| ACC40053 | 0.625" | - | 1.000" | - | 0.187" | - | 4" | - | - | - | 15ft |
| ACC40055 | 0.750" | 19.05mm | 1.125" | 28.58mm | 0.187" | 4.75mm | 5.5" | 139.7mm | 110 PSI | 7.6 bar | 15ft |
* Working pressure is determined using a 4:1 safety factor of the maximum burst pressure per ASTM D1599.
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
