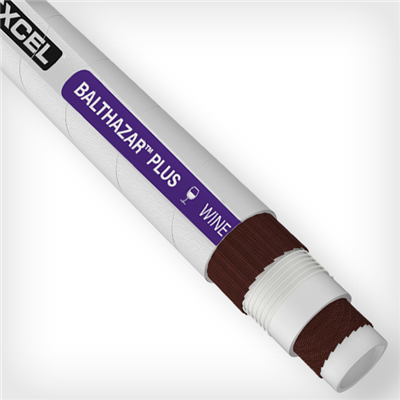

BZAR-3.0-100 by Texcel | BALTHAZAR PLUS™ Series | Winery Hose | 3" Hose ID | 250 PSI | 29 in/Hg Vacuum Rated | Gray
Texcel
BALTHAZAR™ PLUS Series | Winery Hose
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $51.88 |
| 40–79 | $46.91 |
| 80+ | $41.39 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | BALTHAZAR™ Plus winery hose is a smooth covered hose formulated for the suction and delivery of wine, fruit juice, and soft drinks. The BALTHAZAR™ Plus hose has a white, smooth Butyl tube to ensure food quality and is odorless and does not alter taste. Its high working temperature allows for the sterilization of the hose with steam at 230ºF for 30 minutes. Meets FDA title 21 part.177.2600(e) for liquid foods, BfR, ADI free, EC 1935 / 2004. | Tube: | White, Butyl |
| Cover: | Gray, EPDM | Reinforcement: | High strength synthetic plies with polyethylene spiral helix |
| Safety Factor: | 3:1 | Temperature: | -30°F to +220°F |
| Branding: | TEXCEL® BALTHAZAR™ PLUS WINERY HOSE 250 PSI (17BAR) | W.P. TEMP.: | -30F TO +220F (-34C TO 104C) STERILIZATION AT 230F FOR 30 MINS FDA BFR ADI FREE |
| Safety Note: | It is recommended that all food grade hose be thoroughly flushed prior to initial use | Features: | FDA, USDA compliant |
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./Ft. |
|---|---|---|---|---|---|---|
| BZAR-1.5-100 | 1-1/2" | 2-4/64" | 250 psi | 29 | 5" | 0.93 lbs |
| BZAR-2.0-100 | 2" | 2-40/64" | 250 psi | 29 | 9" | 1.26 lbs |
| BZAR-3.0-100 | 3" | 3-52/64" | 250 psi | 29 | 10" | 2.02 lbs |
