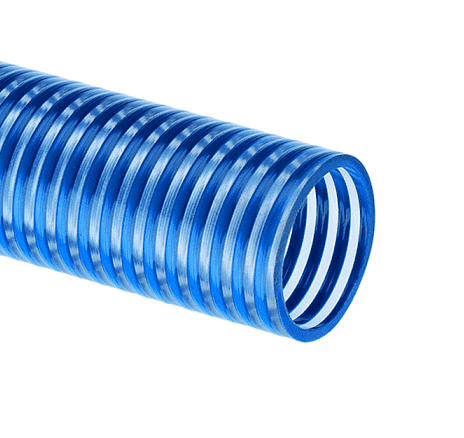

BW400X100 Tigerflex by Kuriyama | BW Series | Blue Water Low Temperature Suction Hose | 4" ID | PVC | 100ft Length
Kuriyama

BW400X100 Tigerflex by Kuriyama | BW Series | Blue Water Low Temperature Suction Hose | 4" ID | PVC | 100ft Length

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Application: Extreme cold conditions, Pumps, Rental and construction dewatering, Trash, Water suction - standard duty, SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Beware of imitations! Blue Water truly remains flexible in extreme cold.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Smooth Outer Cover (Sizes 1" - 4") - Provides increased pressure rating and smooth surface for banding.
  • Convoluted Outer Cover (Sizes 5" & 6") - Provides increased hose flexibility.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
BW075X100 3/4" 19.1mm 1.01" 25.6mm 115 PSI 75 PSI Full 28 in.Hg 3" 100ft 0.19 lbs
BW100X100 1" 25.4mm 1.26" 32.0mm 90 PSI 65 PSI Full 28 in .Hg 3" 100ft 0.22 lbs
BW125X100 1-1/4" 31.8mm 1.56" 39.6mm 90 PSI 65 PSI Full 26 in .Hg 4" 100ft 0.36 lbs
BW150X100 1-1/2" 38.1mm 1.79" 45.5mm 90 PSI 65 PSI Full 26 in. Hg 5" 100ft 0.48 lbs
BW200X100 2" 50.8mm 2.35" 59.8mm 90 PSI 65 PSI Full 26 in. Hg 7" 100ft 0.62 lbs
BW250X100 2-1/2" 63.5mm 2.87" 73.0mm 70 PSI 48 PSI Full 26 in. Hg 8" 100ft 0.87 lbs
BW300X100 3" 76.2mm 3.43" 87.0mm 65 PSI 45 PSI Full 26 in. Hg 10" 100ft 1.23 lbs
BW400X100 4" 101.6mm 4.49" 114.0mm 55 PSI 40 PSI Full 26 in. Hg 15" 100ft 1.83 lbs
BW500X100 5" 127.0mm 5.57" 141.5mm 45 PSI 30 PSI 28 in. Hg 24 in. Hg 25" 100ft 2.42 lbs
BW500X20 5" 127.0mm 5.57" 141.5mm 45 PSI 30 PSI 28 in. Hg 24 in. Hg 25" 20ft 2.42 lbs
BW600X100 6" 152.4mm 6.69" 170.0mm 40 PSI 25 PSI 28 in. Hg 22 in. Hg 30" 100ft 3.36 lbs
BW600X20 6" 152.4mm 6.69" 170.0mm 40 PSI 25 PSI 28 in. Hg 22 in. Hg 30" 20ft 3.36 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
