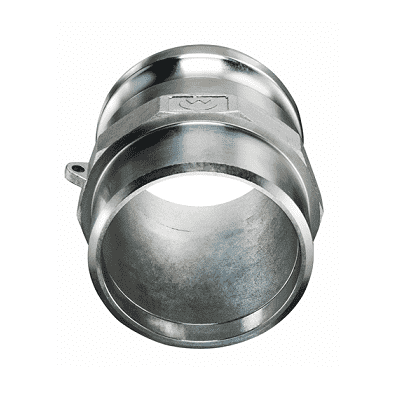

BW-SSF150 by Kuriyama | Quick-Acting Weld Coupling | Part F | 1-1/2" Male Adapter | 316 Stainless Steel

BW-SSF150 by Kuriyama | Quick-Acting Weld Coupling | Part F | 1-1/2" Male Adapter | 316 Stainless Steel

Sale price$50.58

Kuriyama Couplings™ - Quick-Acting Weld Couplings - Part F - Male Adapter x Butt Weld - Stainless Steel 316 BW Items are Dual Purpose Butt Weld to Schedule 40 Pipe or Socket Weld to Nominal OD Tubing

Buy More, Save More!
Quantity Price Each
10–39 $47.55
40–79 $42.99
80+ $37.94
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Other

Ends Configuration:
  • 1-1/2in Male Cam & Groove
  • 1-1/2in Weld End
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2"
Materials:
  • ASTM A666 316 stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
BW-SSF150 1-1/2" x 1-1/2" 1.4 lbs
BW-SSF200 2" x 2" 1.57 lbs
BW-SSF250 2-1/2" x 2-1/2" 2.8 lbs
BW-SSF300 3" x 3" 4.17 lbs
BW-SSF400 4" x 4" 6.57 lbs
BW-SSF500 5" x 5" 8.51 lbs
BW-SSF600 6" x 6" 11.52 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
