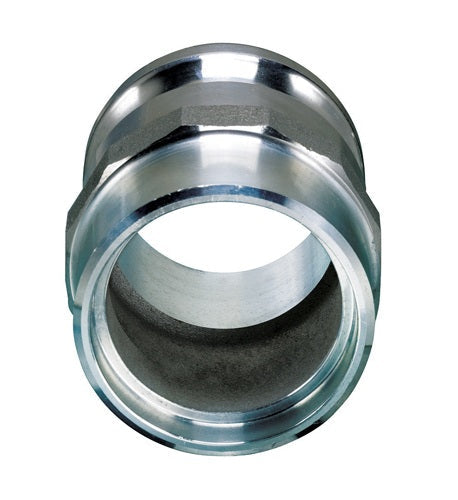

BW-ALF500 by Kuriyama | BW-ALF Series | Part F | Cam & Groove Adapter | 5" Adapter x 5" Butt Weld End | Aluminum
Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | BW-ALF Series | Part F | Adapter x Butt Weld End | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $56.81 |
| 40–79 | $51.37 |
| 80+ | $45.33 |
Discounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- BW items are dual purpose which allows them be used as butt weld fittings to schedule 40 pipe and socket weld fittings for nominal OD tubing.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|
| BW-ALF150 | 1-1/2" | 250 PSI | B26 Grade 713 | 0.52 lbs |
| BW-ALF200 | 2" | 250 PSI | B26 Grade 713 | 0.74 lbs |
| BW-ALF250 | 2-1/2" | 150 PSI | B26 Grade 713 | 1.02 lbs |
| BW-ALF300 | 3" | 150 PSI | B26 Grade 713 | 1.36 lbs |
| BW-ALF400 | 4" | 150 PSI | B26 Grade 713 | 2.40 lbs |
| BW-ALF500 | 5" | 75 PSI | B26 Grade 713 | 3.03 lbs |
| BW-ALF600 | 6" | 75 PSI | B26 Grade 713 | 4.01 lbs |
| BW-ALF800 | 8" | 50 PSI | B26 Grade 713 | 8.05 lbs |
Product Data:
Series:
MAWP:
75
Shape:
Straight
Cam & Groove Type:
Type F
Ends Configuration:
Material(s):
