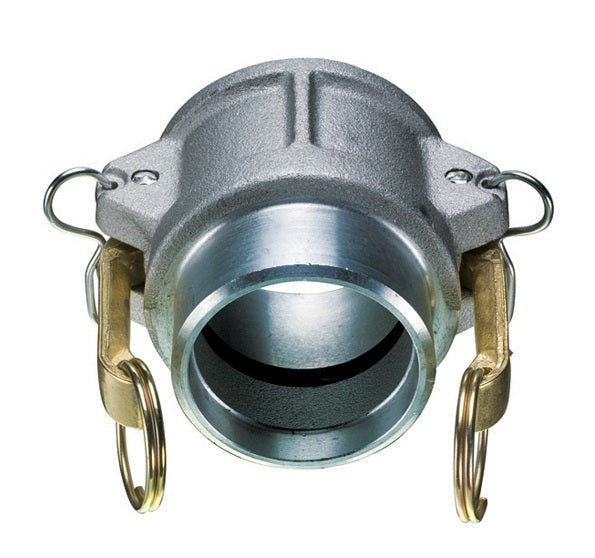

BW-ALB300 by Kuriyama | BW-ALB Series | Part B | Cam & Groove Adapter | 3" Coupler x 3" Butt Weld End | Aluminum

BW-ALB300 by Kuriyama | BW-ALB Series | Part B | Cam & Groove Adapter | 3" Coupler x 3" Butt Weld End | Aluminum

Sale price$50.85

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | BW-ALB Series | Part B | Coupler x Butt Weld End | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Buy More, Save More!
Quantity Price Each
10–39 $47.80
40–79 $43.22
80+ $38.14
Discounts applied in cart/checkout.

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Supplied with forged brass handles which results in less wear on connecting parts.
  • BW items are dual purpose which allows them be used as butt weld fittings to schedule 40 pipe and socket weld fittings for nominal OD tubing.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Forged brass handles.
  • Zinc plated carbon steel handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
BW-ALB150 1-1/2" 250 PSI B26 Grade 713 0.76 lbs
BW-ALB200 2" 250 PSI B26 Grade 713 0.92 lbs
BW-ALB250 2-1/2" 150 PSI B26 Grade 713 1.09 lbs
BW-ALB300 3" 150 PSI B26 Grade 713 1.64 lbs
BW-ALB400 4" 150 PSI B26 Grade 713 2.51 lbs
BW-ALB500 5" 75 PSI B26 Grade 713 3.43 lbs
BW-ALB600 6" 75 PSI B26 Grade 713 5.08 lbs
BW-ALB800 8" 50 PSI B26 Grade 713 8.15 lbs

Product Data:

Series:
  • BW-ALB Series
MAWP:

150

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
