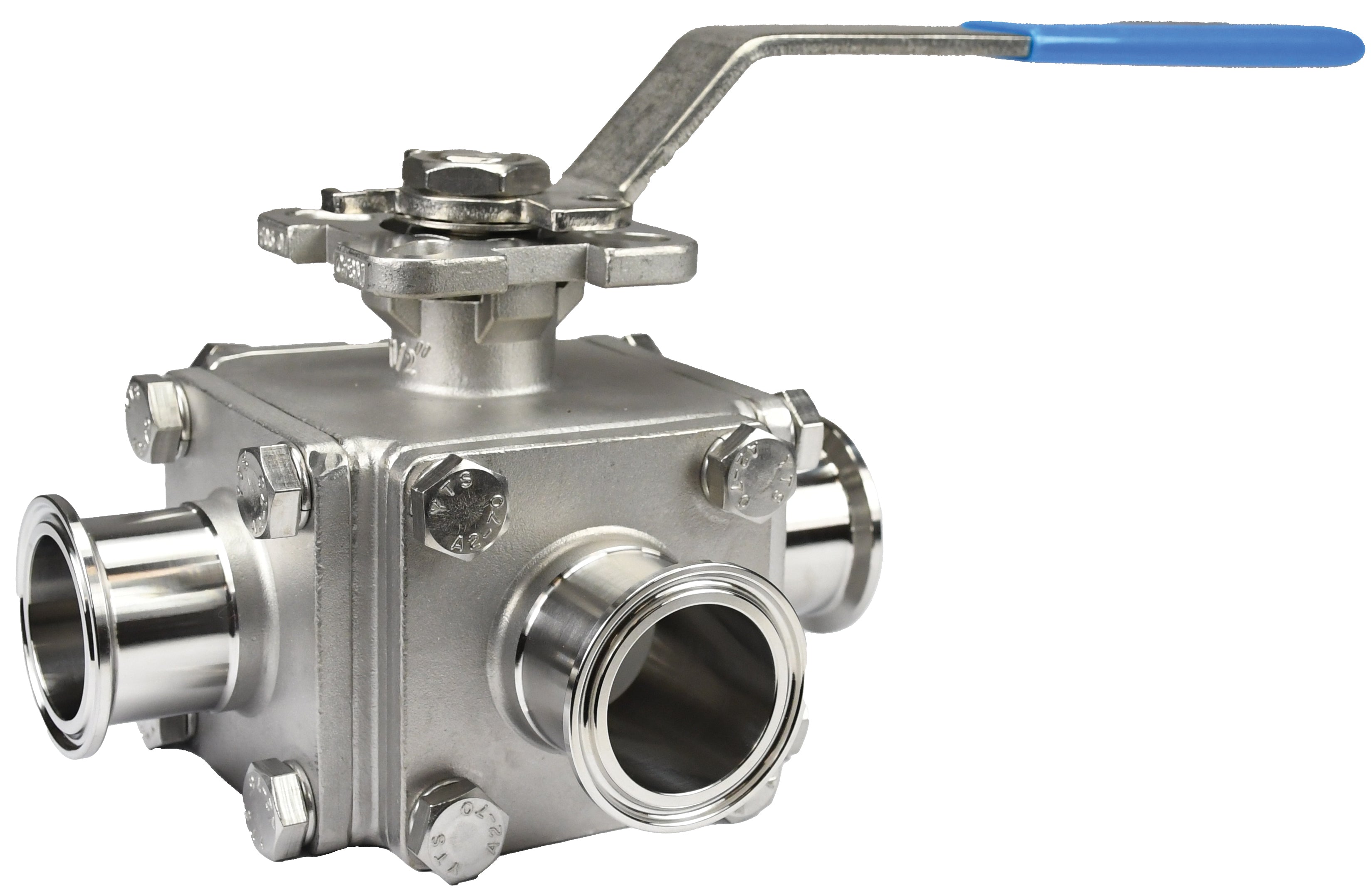

BV3SVLF050C-A Dixon Valve 1/2" Sanitary Three-Way "L" Multi-Port Stainless Steel Clamp End Ball Valve - Seat: Virgin PTFE
Dixon Sanitary Valves
Sanitary Three-Way "L" Multi-Port Stainless Steel Ball Valve - Clamp Ends
Seat: Virgin PTFE
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $344.99 |
| 15–29 | $311.96 |
| 30+ | $275.26 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
| Features: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Size | Dimensions | |||||||||
| A | B | C | D | E | F | G | H | Break Torque |
Pressure Rating | ||
| BV3SVLF050C-A | 1/2" | 4.6" | 2.3" | 3.3" | 1.7" | 4.9" | 9mm | 36mm | 42mm | 65 in. lbs. | 1000 PSI WOG |
| BV3SVLF075C-A | 3/4" | 5.0" | 2.5" | 3.5" | 1.9" | 4.9" | 9mm | 36mm | 42mm | 76 in. lbs. | 1000 PSI WOG |
| BV3SVLF100C-A | 1" | 6.0" | 3.0" | 3.8" | 2.3" | 5.4" | 11mm | 42mm | 50mm | 171 in. lbs. | 650 PSI WOG |
| BV3SVLF150C-A | 1-1/2" | 6.9" | 3.4" | 4.5" | 2.9" | 9.3" | 14mm | 50mm | 70mm | 356 in. lbs. | 400 PSI WOG |
| BV3SVLF200C-A | 2" | 7.5" | 3.7" | 4.9" | 3.2" | 9.3" | 14mm | 50mm | 70mm | 553 in. lbs. | 400 PSI WOG |
| BV3SVLF250C-A | 2-1/2" | 8.4" | 4.5" | 5.3" | 3.9" | 18.0" | 17mm | 70mm | 102mm | 1114 in. lbs. | 400 PSI WOG |
| BV3SVLF300C-A | 3" | 9.6" | 5.1" | 6.5" | 4.9" | 18.3" | 22mm | 102mm | 125mm | 1875 in. lbs. | 400 PSI WOG |
