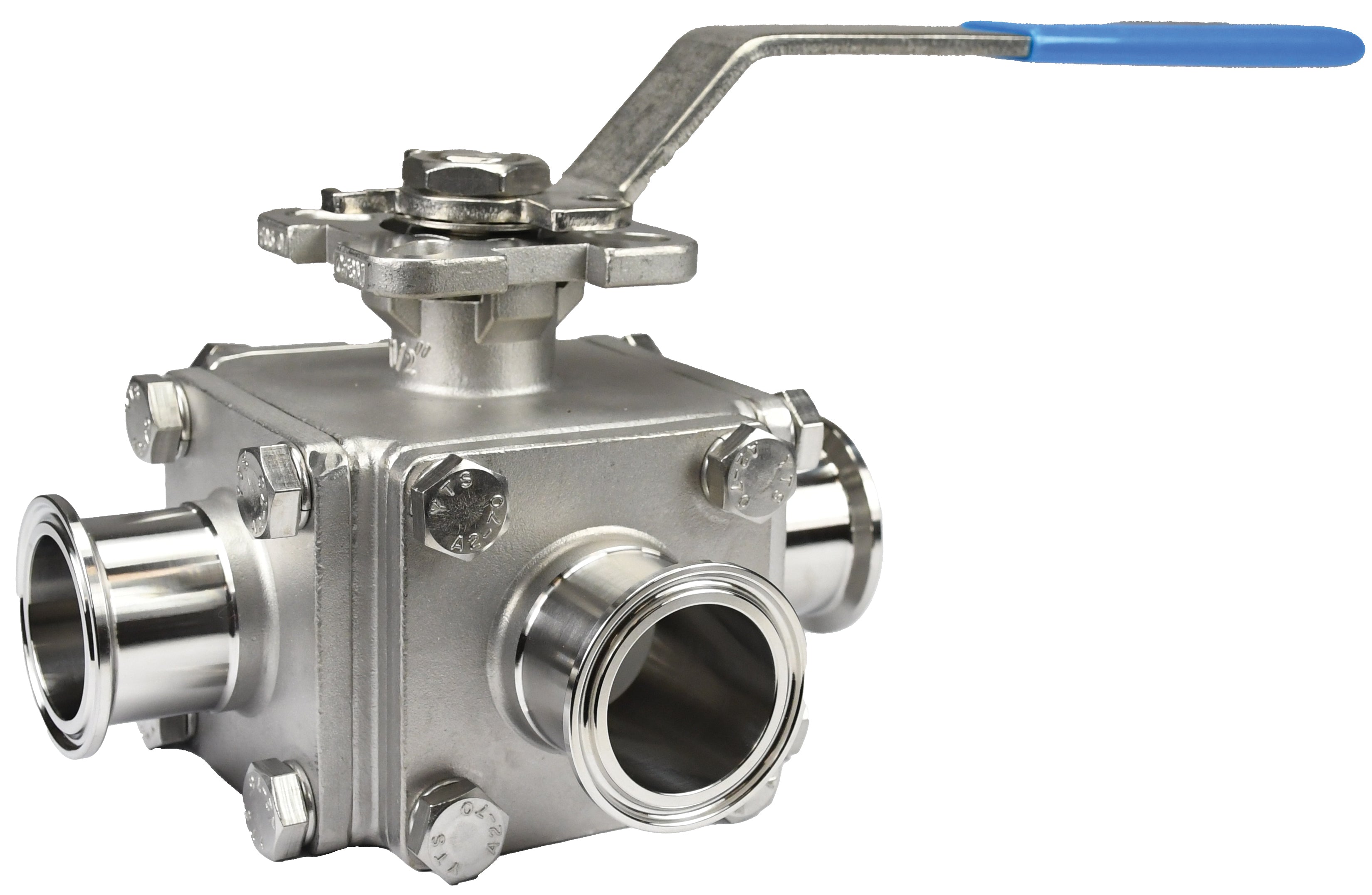

BV3SULF300C-A Dixon Valve 3" Sanitary Three-Way "L" Multi-Port Stainless Steel Clamp End Ball Valve - Seat: UHMW
Dixon

BV3SULF300C-A Dixon Valve 3" Sanitary Three-Way "L" Multi-Port Stainless Steel Clamp End Ball Valve - Seat: UHMW

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Full port design
  • Blow-out proof stem
  • Live-loaded stem packing
  • Lock-out, tag out
  • Port: L Port
Construction:
  • CF8M stainless body, ends and ball.
  • UHMW, Ultra-high molecular weight polyethylene, seat is specified for its low modulus of abrasion and minimal property degradation when exposed to moderate levels of radiation. Ideal for applications where fluorocarbons are not acceptable. Food Grade Material.
  • ISO 5211 mounting pad.
Part Number Size Dimensions
A B C D E F G H Break
Torque		 Pressure Rating
BV3SULF100C-A 1" 6.0" 3.0" 3.8" 2.3" 5.4" 11mm 42mm 50mm 171 in. lbs. 650 PSI WOG
BV3SULF150C-A 1-1/2" 6.9" 3.4" 4.5" 2.9" 9.3" 14mm 50mm 70mm 356 in. lbs. 400 PSI WOG
BV3SULF200C-A 2" 7.5" 3.7" 4.9" 3.2" 9.3" 14mm 50mm 70mm 553 in. lbs. 400 PSI WOG
BV3SULF300C-A 3" 9.6" 5.1" 6.5" 4.9" 18.3" 22mm 102mm 125mm 1875 in. lbs. 400 PSI WOG

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
