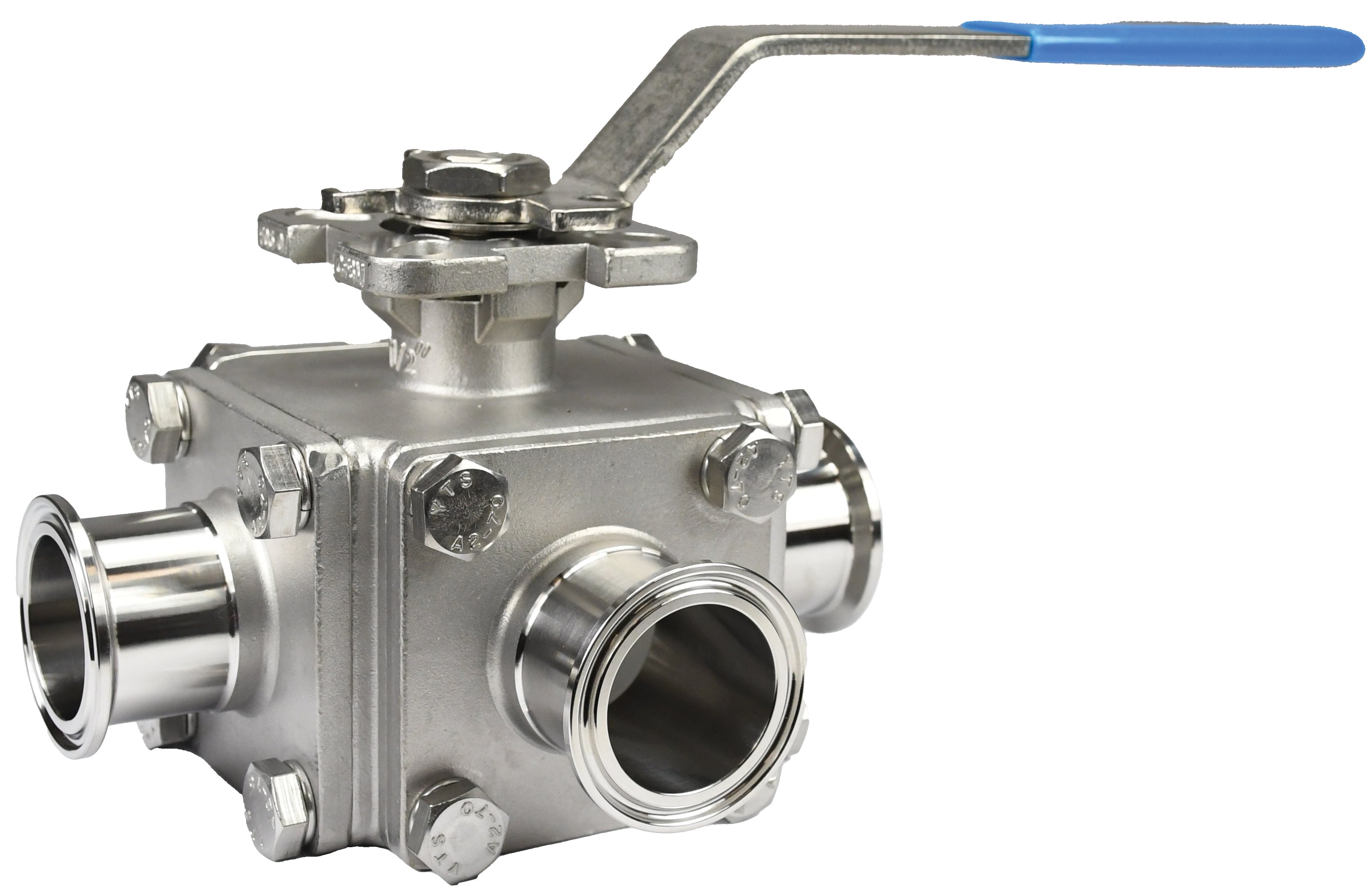

BV3SSTF300C-A Dixon Valve 3" Sanitary Three-Way "T" Multi-Port Stainless Steel Clamp End Ball Valve - Seat: 50% Stainless Steel Reinforced PTFE
Dixon Sanitary Valves
Sanitary Three-Way "T" Multi-Port Stainless Steel Clamp End Ball Valve - Clamp Ends
Seat: 50% Stainless Steel Reinforced PTFE
| Buy More, Save More! | |
| Quantity | Price Each |
| 3–5 | $6,550.82 |
| 6+ | $6,272.06 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Material(s):
Seal Material(s):
| Features: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Size | Dimensions | |||||||||
| A | B | C | D | E | F | G | H | Break Torque |
Pressure Rating |
||
| BV3SSTF050C-A | 1/2" | 4.6" | 2.3" | 3.3" | 1.7" | 4.9" | 9mm | 36mm | 42mm | 59 in. lbs. | 1000 PSI WOG |
| BV3SSTF075C-A | 3/4" | 5.0" | 2.5" | 3.5" | 1.9" | 4.9" | 9mm | 36mm | 42mm | 101 in. lbs. | 1000 PSI WOG |
| BV3SSTF100C-A | 1" | 6.0" | 3.0" | 3.8" | 2.3" | 5.4" | 11mm | 42mm | 50mm | 228 in. lbs. | 650 PSI WOG |
| BV3SSTF150C-A | 1-1/2" | 6.9" | 3.4" | 4.5" | 2.9" | 9.3" | 14mm | 50mm | 70mm | 395 in. lbs. | 400 PSI WOG |
| BV3SSTF200C-A | 2" | 7.5" | 3.7" | 4.9" | 3.2" | 9.3" | 14mm | 50mm | 70mm | 736 in. lbs. | 400 PSI WOG |
| BV3SSTF300C-A | 3" | 9.6" | 5.1" | 6.5" | 4.9" | 18.3" | 22mm | 102mm | 125mm | 1863 in. lbs. | 400 PSI WOG |
