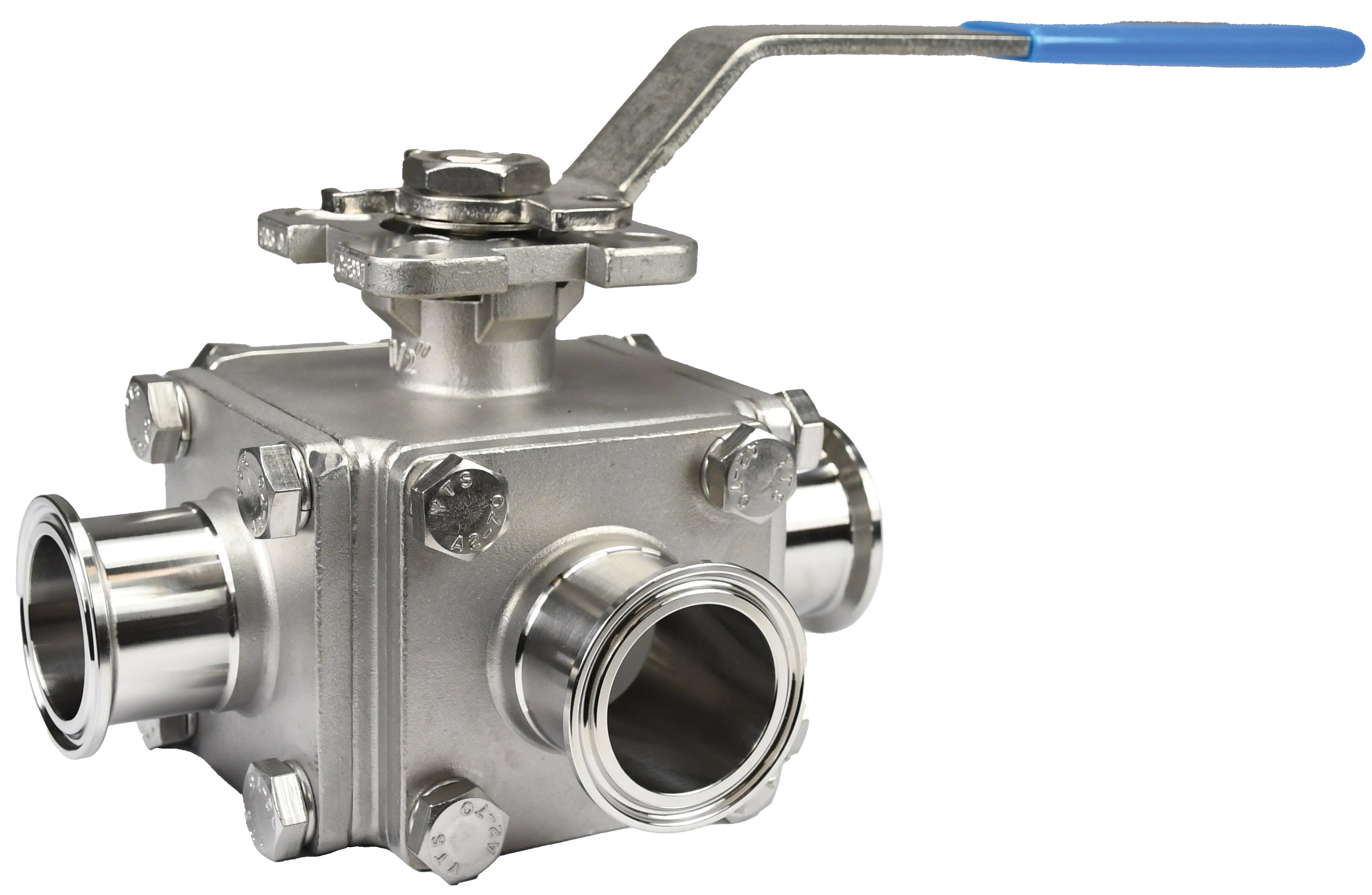

BV3SGLF200C-A Dixon Valve 2" Sanitary Three-Way "L" Multi-Port Stainless Steel Clamp End Ball Valve - Seat: 15% Glass Reinforced RTFE
Dixon Sanitary Valves
Sanitary Three-Way "L" Multi-Port Stainless Steel Ball Valve - Clamp Ends
Seat: 15% Glass Reinforced RTFE
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $2,241.11 |
| 8–14 | $2,145.74 |
| 15+ | $1,907.33 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Material(s):
Seal Material(s):
| Features: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Size | Dimensions | |||||||||
| A | B | C | D | E | F | G | H | Break Torque |
Pressure Rating | ||
| BV3SGLF050C-A | 1/2" | 4.6" | 2.3" | 3.3" | 1.7" | 4.9" | 9mm | 36mm | 42mm | 71 in. lbs. | 1000 PSI WOG |
| BV3SGLF100C-A | 1" | 6.0" | 3.0" | 3.8" | 2.3" | 5.4" | 11mm | 42mm | 50mm | 188 in. lbs. | 650 PSI WOG |
| BV3SGLF150C-A | 1-1/2" | 6.9" | 3.4" | 4.5" | 2.9" | 9.3" | 14mm | 50mm | 70mm | 392 in. lbs. | 400 PSI WOG |
| BV3SGLF200C-A | 2" | 7.5" | 3.7" | 4.9" | 3.2" | 9.3" | 14mm | 50mm | 70mm | 608 in. lbs. | 400 PSI WOG |
