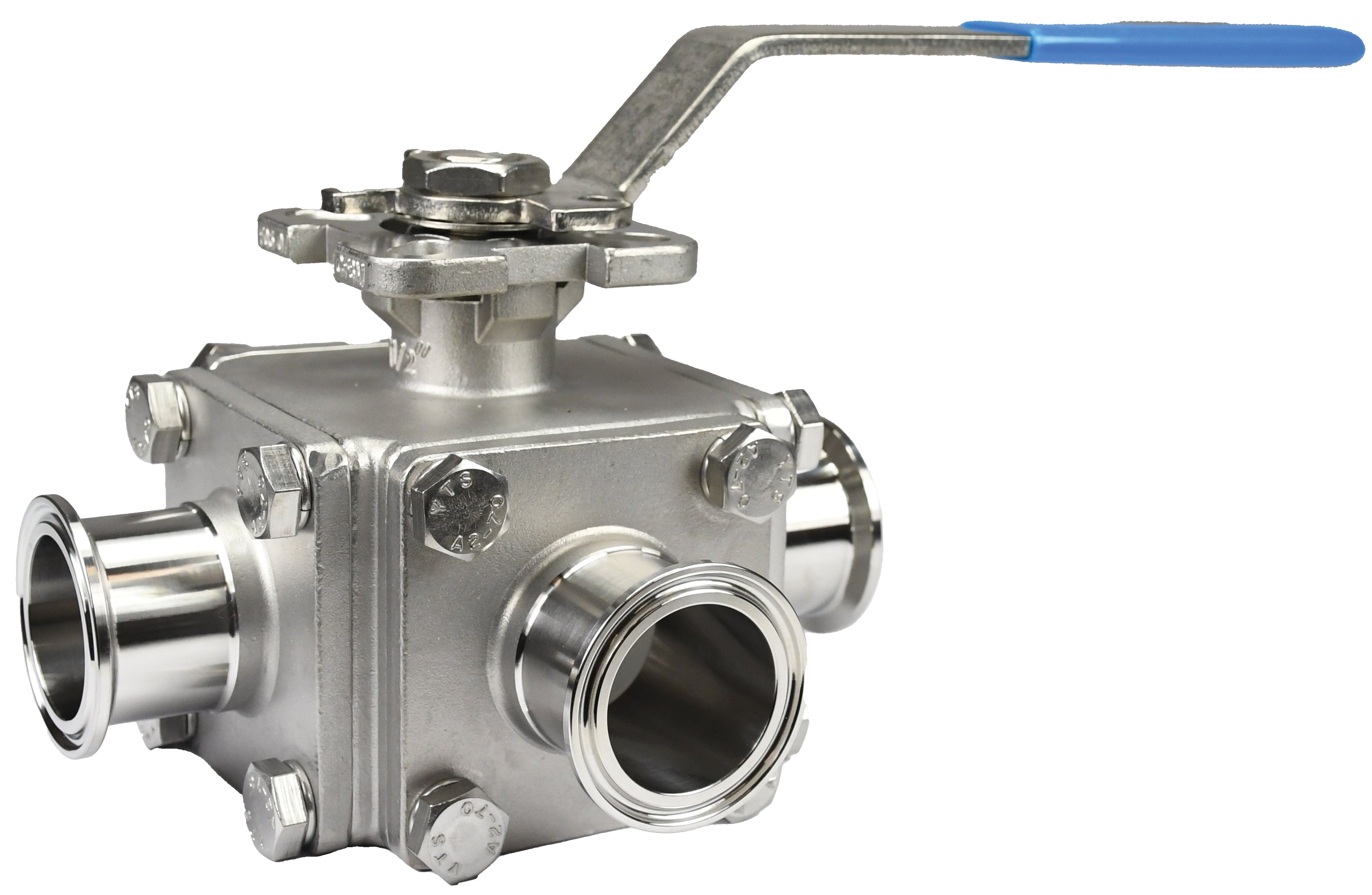

BV3SCTF150C-A Dixon Valve 1-1/2" Sanitary Three-Way "T" Multi-Port Stainless Steel Clamp End Ball Valve - Seat: 25% Carbon Reinforced PTFE
Dixon

BV3SCTF150C-A Dixon Valve 1-1/2" Sanitary Three-Way "T" Multi-Port Stainless Steel Clamp End Ball Valve - Seat: 25% Carbon Reinforced PTFE

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Full port design
  • Blow-out proof stem
  • Live-loaded stem packing
  • Lock-out, tag out
  • Port: T Port
Construction:
  • CF8M stainless body, ends and ball.
  • 25% carbon reinforced tetrafluoroethylene seat is specified for higher temperature pressure applications. Ideal for steam and thermal fluid applications. Higher cycle life than RTFE.
  • ISO 5211 mounting pad.
Part Number Size Dimensions
A B C D E F G H Break
Torque
BV3SCTF075C-A 3/4" 5.0" 2.5" 3.5" 1.9" 4.9" 9mm 36mm 42mm 92 in. lbs.
BV3SCTF100C-A 1" 6.0" 3.0" 3.8" 2.3" 5.4" 11mm 42mm 50mm 207 in. lbs.
BV3SCTF150C-A 1-1/2" 6.9" 3.4" 4.5" 2.9" 9.3" 14mm 50mm 70mm 359 in. lbs.
BV3SCTF200C-A 2" 7.5" 3.7" 4.9" 3.2" 9.3" 14mm 50mm 70mm 669 in. lbs.
BV3SCTF250C-A 2-1/2" 8.4" 4.5" 5.3" 3.9" 18.0" 17mm 70mm 102mm 1348 in. lbs.
BV3SCTF300C-A 3" 9.6" 5.1" 6.5" 4.9" 18.3" 22mm 102mm 125mm 1694 in. lbs.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
