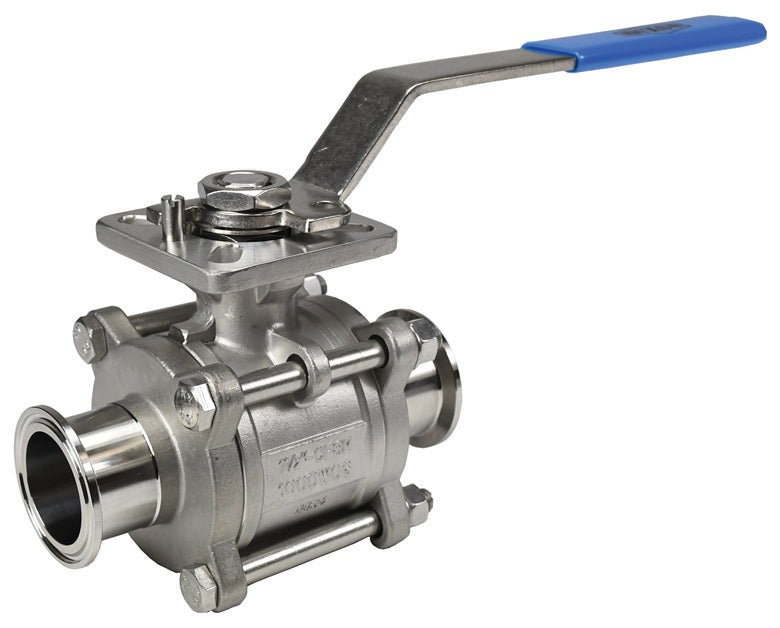

BV2CV-200CC-A Dixon Valve 2" 316 Stainless Steel Sanitary 2-Way 3 Piece Encapsulated Ball Valve

BV2CV-200CC-A Dixon Valve 2" 316 Stainless Steel Sanitary 2-Way 3 Piece Encapsulated Ball Valve

Sale price$468.86
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • 1/2" - 2" rated at 1,000 PSI WOG; 2-1/2" - 4" rated at 800 PSI WOG.
  • Balanced encapsulated construction minimizes cold flow.
  • Live-loaded stem packing.
  • Precision stainless steel balls reduce torque and friction.
  • Losses while extending seat life.
  • Integral ISO 5211 mounting pad.
  • ID polish is Ra 32 minimum.
  • Lockable handle can prevent accidental actuation.
  • Standard internal entry blow out proof stem design.
  • Full port design matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow.
  • Compact design for areas with tight space restrictions.
  • Fully encapsulated construction produces bubble tight seal.
  • Identification tagging available.
  • Virgin PTFE seats.
  • Repair kits available.
Dimensions:
Part Number Size Dimensions Weight (Lbs.)
A B C D E
BV2CV-050CC-A 1/2" 4.9" 1.5" 4.3" 3.0" 1.9" 2.4400
BV2CV-075CC-A 3/4" 4.9" 1.8" 4.7" 3.3" 2.2" 2.9000
BV2CV-100CC-A 1" 5.6" 2.1" 4.9" 3.6" 2.4" 3.8000
BV2CV-150CC-A 1-1/2" 9.5" 2.7" 5.6" 4.4" 3.1" 7.0400
BV2CV-200CC-A 2" 9.5" 3.1" 6.4" 4.8" 3.7" 10.7600
BV2CV-250CC-A 2-1/2" 18.0" 3.8" 7.8" 5.2" 4.8" 20.9900
BV2CV-300CC-A 3" 18.0" 4.2" 9.0" 5.7" 5.4" 32.3000
BV2CV-400CC-A 4" 18.0" 5.3" 9.5" 6.8" 8.8" 49.0000

Dixon Sanitary's commitment to excellence and continuous research and development for improving product quality may warrant periodic changes in design and specification. Dixon reserves the right to modify product design without prior notification and without incurring any liability to provide these modifications to products previously purchased.

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 2in Sanitary Clamp End
  • 2in Sanitary Clamp End
  • Some Ends Match
Material(s):
  • 316 Stainless Steel
