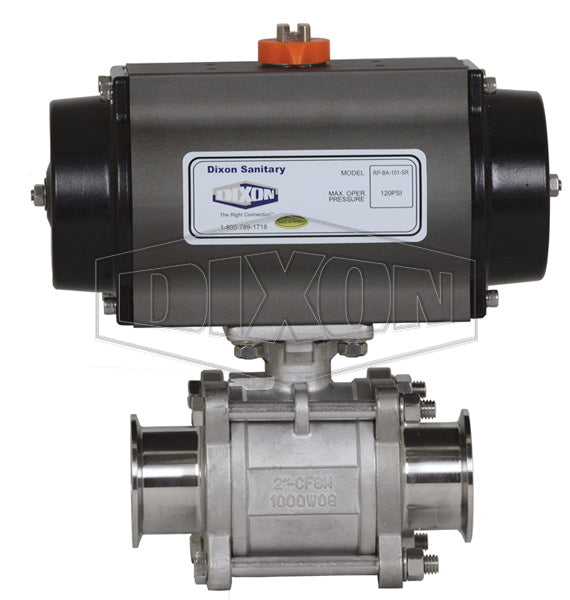

BV2CV-075CC-BCC Dixon Valve 3/4" Pneumatically Actuated 3-Piece Sanitary Clamp End Ball Valve - 316 Stainless Steel - Double Acting - Seat: Virgin PTFE
Dixon

BV2CV-075CC-BCC Dixon Valve 3/4" Pneumatically Actuated 3-Piece Sanitary Clamp End Ball Valve - 316 Stainless Steel - Double Acting - Seat: Virgin PTFE

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Compact design for areas with tight space restrictions.
  • Full-port valve design offers lower pressure drop and a less turbulent flow.
  • Balanced encapsulated valve construction minimizes cold-flow of seats.
  • Precision stainless steel balls reduce torque and friction losses while extending the seat life of the valve.
  • Actuator is tested to one million cycles and it features bi-directional stops for ±5º travel adjustment and visual position indication.
  • 80 PSI plant air is required.
  • Actuator Maximum Operating Pressure: 120 PSI.
  • Temperature Range: -40°F to 200°F (-40°C to 93°C).
Construction:
  • Valve has Virgin PTFE seats, a blow-out proof stainless steel stem and live-loaded stem packing.
  • ID polish is Ra 32 minimum.
  • Rack and Pinion actuator has a hard anodized aluminum body, nickel plated anti-blowout pinion, Buna-N O-rings and NAMUR mounting.
  • Material: 316 Stainless Steel.
Safety Notes:
  • Even though there are torque safety factors built into our automated ball valve packages, actual service conditions must also be considered when selecting the proper product for the appropriate application.
  • Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other viscous fluids can have a dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators may be required. Please consult Dixon when dealing with these types of applications.
Part Number Size Dimensions
A B C D E F Valve Pressure
Rating
BV2CV-050CC-BCC 1/2" 4.3" 4.1" 5.0" 4.8" 2.9" 1.5" 1000 PSI WOG
BV2CV-075CC-BCC 3/4" 4.7" 4.4" 5.3" 4.8" 2.9" 1.8" 1000 PSI WOG
BV2CV-100CC-BCC 1" 4.9" 5.2" 6.0" 5.6" 3.2" 2.1" 1000 PSI WOG
BV2CV-150CC-BCC 1-1/2" 5.6" 6.6" 7.3" 6.1" 3.7" 2.7" 1000 PSI WOG
BV2CV-200CC-BCC 2" 6.4" 6.9" 7.7" 6.1" 3.7" 3.1" 1000 PSI WOG
BV2CV-300CC-BCC 3" 9.0" 9.7" 10.5" 10.6" 5.6" 4.2" 800 PSI WOG
BV2CV-400CC-BCC 4" 9.6" 10.9" 11.7" 10.6" 5.6" 5.3" 800 PSI WOG
