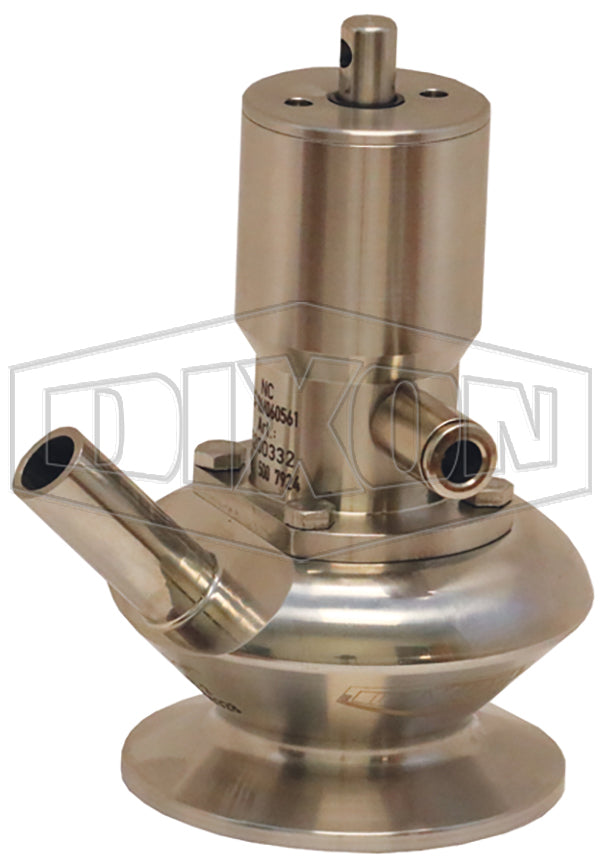

BSVS-PC250B375 Dixon Valve/Rieger 3A Sample Valve - Single Port with Pneumatic Actuator (without Lever) - 2-1/2" Clamp Valve - 3/8" Weld Port
Dixon

BSVS-PC250B375 Dixon Valve/Rieger 3A Sample Valve - Single Port with Pneumatic Actuator (without Lever) - 2-1/2" Clamp Valve - 3/8" Weld Port

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Valve body made from solid bar
  • No dead space
  • Drainable
  • Connections suitable for orbital welding
  • Hermetically sealed against environment
  • Optimum cleanability
  • Change of seals without special tools
  • Long life of the PTFE-bellows
  • Low spare part costs
Construction:
  • Product contact metal: 316L stainless steel, ≤ 32Ra surface finish
  • Non-product contact metal: 304 stainless steel, ≤ 63Ra surface finish
  • Product contact seals: PTFE Bellows
Specifications:
  • Maximum pressure: 116 PSI
  • Actuator control air pressure: 87-145 PSI
  • Maximum temperature: 250°F (121°C)
  • Maximum cleaning temperature: 275°F (135°C) for 20 minutes
Part Number Clamp Size Weld Port Size
BSVS-PC050B025 1/2" - 3/4" 1/4"
BSVS-PC050B050 1/2" - 3/4" 1/2"
BSVS-PC050B375 1/2" - 3/4" 3/8"
BSVS-PC100B025 1" - 1-1/2" 1/4"
BSVS-PC100B050 1" - 1-1/2" 1/2"
BSVS-PC100B375 1" - 1-1/2" 3/8"
BSVS-PC200B025 2" 1/4"
BSVS-PC200B050 2" 1/2"
BSVS-PC200B375 2" 3/8"
BSVS-PC250B025 2-1/2" 1/4"
BSVS-PC250B050 2-1/2" 1/2"
BSVS-PC250B375 2-1/2" 3/8"
BSVS-PC300B025 3" 1/4"
BSVS-PC300B050 3" 1/2"
BSVS-PC300B375 3" 3/8"
BSVS-PC400B025 4" 1/4"
BSVS-PC400B050 4" 1/2"
BSVS-PC400B375 4" 3/8"
Replacement Parts
Part Number Description Includes
BSV-NRKS050400 Repair Kit for BSV Sample Valves (1) Silicone O-ring
(1) PTFE Bellows
