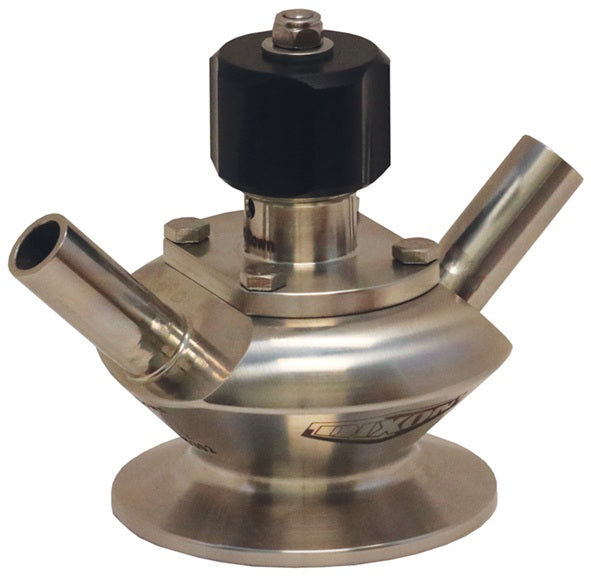

BSVD-HC050B025 Dixon Valve/Rieger 3A Sample Valve - Dual Port with Manual Handwheel - 1/2" Clamp Valve - 1/4" Weld Port

BSVD-HC050B025 Dixon Valve/Rieger 3A Sample Valve - Dual Port with Manual Handwheel - 1/2" Clamp Valve - 1/4" Weld Port

Sale price$1,044.99
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Valve body made from solid bar
  • No dead space
  • Drainable
  • Connections suitable for orbital welding
  • Hermetically sealed against environment
  • Optimum cleanability
  • Change of seals without special tools
  • Long life of the PTFE-bellows
  • Low spare part costs
  • Manual actuator (hand wheel)
Materials:
  • In product contact: 1.4404/AISI 316L
  • Non product contact: 1.4301/AISI 304
  • Product contact seals: PTFE bellows
  • Surfaces: wetted product surfaces: Ra <= 32 (optional surface finishes available). Non product contact: Ra <= 63
Specifications:
  • Closing tension operating pressure: maximum 116 PSI
  • Hand wheel version operating pressure: minimum 87 PSI, maximum 232 PSI
  • Controlled air pressure: maximum 145 PSI
Single Port
Part Number		 Dual Port
Part Number		 Clamp Valve Size Weld Port Size
BSVS-HC050B025 BSVD-HC050B025 1/2" 1/4"
BSVS-HC050B375 BSVD-HC050B375 1/2" 3/8"
BSVS-HC050B050 BSVD-HC050B050 1/2" 1/2"
BSVS-HC100B025 BSVD-HC100B025 1" - 1-1/2" 1/4"
BSVS-HC100B375 BSVD-HC100B375 1" - 1-1/2" 3/8"
BSVS-HC100B050 BSVD-HC100B050 1" - 1-1/2" 1/2"
BSVS-HC150B025 - 1-1/2" 1/4"
BSVS-HC150B050 - 1-1/2" 1/2"
BSVS-HC150B375 - 1-1/2" 3/8"
BSVS-HC200B025 BSVD-HC200B025 2" 1/4"
BSVS-HC200B375 BSVD-HC200B375 2" 3/8"
BSVS-HC200B050 BSVD-HC200B050 2" 1/2"
BSVS-HC250B025 BSVD-HC250B025 2-1/2" 1/4"
BSVS-HC250B375 BSVD-HC250B375 2-1/2" 3/8"
BSVS-HC250B050 BSVD-HC250B050 2-1/2" 1/2"
BSVS-HC300B025 BSVD-HC300B025 3" 1/4"
BSVS-HC300B375 BSVD-HC300B375 3" 3/8"
BSVS-HC300B050 BSVD-HC300B050 3" 1/2"
BSVS-HC400B025 BSVD-HC400B025 4" 1/4"
BSVS-HC400B375 BSVD-HC400B375 4" 3/8"
BSVS-HC400B050 BSVD-HC400B050 4" 1/2"

Additional Product Data:

Shape:

No Orientation

Material(s):
  • 316L Stainless Steel
  • 304 Stainless Steel
