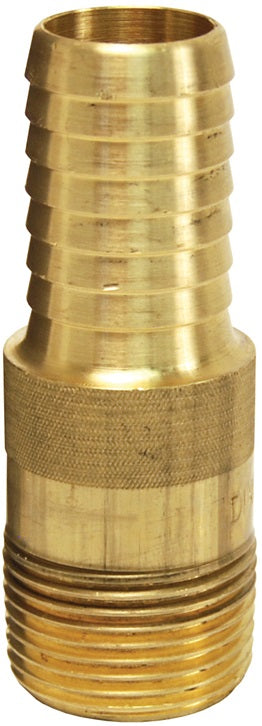

BST10 by Dixon Valve | King Combination Nipple | with Knurled Wrench Grip | 1" Male NPT x 1" Hose ID | Brass

BST10 by Dixon Valve | King Combination Nipple | with Knurled Wrench Grip | 1" Male NPT x 1" Hose ID | Brass

Sale price$36.64

Dixon Valve
King Combination Nipple | with Knurled Wrench Grip | Male NPT x Hose Barb

Recommended for low-pressure discharge and suction service for compatible liquids.
Buy More, Save More!
Quantity Price Each
10–39 $34.44
40–79 $31.14
80+ $27.48
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Male NPT
  • 1in Hose Barb
Material(s):
  • Brass
Safety Notes:
  • King Combination Nipples are not recommended for steam.
  • 1-1/4" and above are not for compressible products such as air or nitrogen.
  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
Unplated Steel
Part Number		 Plated Steel
Part Number		 Brass
Part Number		 Aluminum
Part Number		 Size
ST1 STC1 BST1 AST1 1/2"
ST5 STC5 BST5 AST5 3/4"
ST10 STC10 BST10 AST10 1"
ST15 STC15 - - 1-1/4"
ST20 STC20 - - 1-1/2"
ST25 STC25 - - 2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
