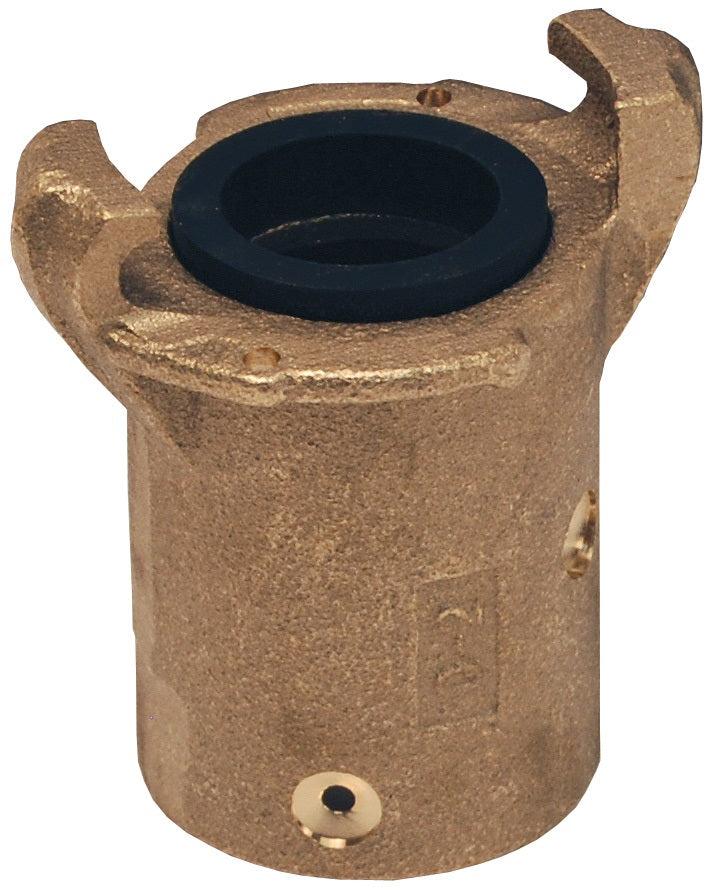

BSB150 by Dixon Valve | Sand Blast Coupling | Hose End | 1-1/2" Hose Size | 2-3/8" Hose OD | Brass

BSB150 by Dixon Valve | Sand Blast Coupling | Hose End | 1-1/2" Hose Size | 2-3/8" Hose OD | Brass

Sale price$94.88

Dixon Valve
Sand Blast Coupling | Hose End

Sand blast couplings are designed for use on sand blast hose.
Buy More, Save More!
Quantity Price Each
5–19 $89.19
20–59 $80.65
60+ $71.16
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Brass
Features:
  • Designed for use on sand blast hose.
  • Supplied with screws.
  • Nozzle holders have 1-1/4" NPSM thread.
  • Abrasive blasting equipment must have hose safety cables or hose coupling safety locks installed to read safety clips.
Specifications:
  • Pressure: 110 PSI at ambient temperature 70°F (21°C).
Installation:
  • 1) Ends of hose must be cut square to fit snug against metal end.
  • 2) Holding hose tight to end of fitting, insert screws and turn in full, putting screw 180° from first to ensure best centering.
  • 3) After all screws have been placed, check tube opposite screws to be sure screws have not penetrated completely through.
  • 4) On quick couplings, insert safety clips.
Brass
Part Number		 Aluminum
Part Number		 Hose Size Hose O.D.
BSB75 ASB75 3/4" 1-1/2"
BSB100 ASB100 1" 1-7/8"
BSB125 ASB125 1-1/4" 2-5/32"
BSB150 ASB150 1-1/2" 2-3/8"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
