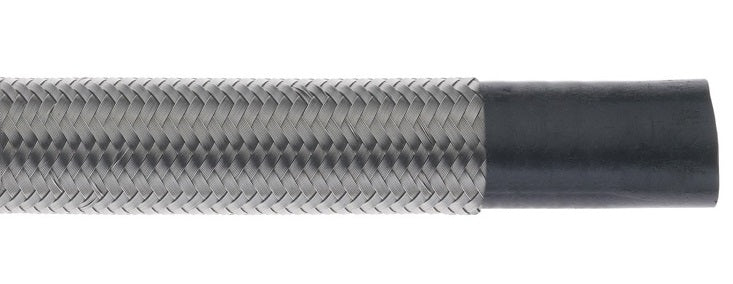

BSB-08 by Dixon Valve | -08 | Nominal Smooth Bore PTFE Hose | 1/2" Nominal Size | .405" Average ID | Black Conductive Tube
Dixon Valve
PTFE Hose | Nominal Smooth Bore PTFE Hose
Suitable for conveying chemicals, foods, pharmaceuticals, oils, gas, fuels, and steam.
Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
MAWP:
2000
Tubing Construction:
Cover Construction:
Special Properties:
Compatible Series:
| Approvals: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
|||
| Specifications: | |||
|
 |
 |
|||
|---|---|---|---|---|
| White, Non-Conductive Part Number |
Black, Conductive Part Number |
Nominal Size |
Average I.D. |
Dash Size |
| WSB-04 | BSB-04 | 1/4" | 0.187" | -04 |
| WSB-05 | - | 5/16" | 0.250" | -05 |
| WSB-06 | BSB-06 | 3/8" | 0.312" | -06 |
| WSB-06T | - | 3/8" True ID | 0.375" | -06T |
| WSB-08 | BSB-08 | 1/2" | 0.405" | -08 |
| WSB-10 | BSB-10 | 5/8" | 0.500" | -10 |
| WSB-12 | BSB-12 | 3/4" | 0.625" | -12 |
| WSB-12T | - | 3/4" True ID | 0.750" | -12T |
| WSB-16 | - | 1" | 0.875" | -16 |
| - | BSB-16T | 1" True ID | 1.000" | -16T |
