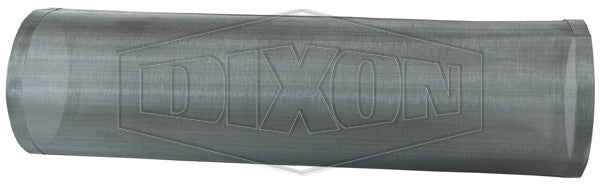

BS20-250-300 Dixon Valve Sanitary 316 Stainless Steel Wire Cloth Mesh Over Screen - 2-1/2" - 3" Size - Short - 864 Micron - 20 Mesh

BS20-250-300 Dixon Valve Sanitary 316 Stainless Steel Wire Cloth Mesh Over Screen - 2-1/2" - 3" Size - Short - 864 Micron - 20 Mesh

Sale price$88.14

Dixon Sanitary Fittings Sanitary 316 Stainless Steel Wire Cloth Mesh Over Screen

Maximum flow for short units is 125 GPM

Maximum flow for long units is 175 GPM
Buy More, Save More!
Quantity Price Each
5–19 $82.85
20–59 $74.92
60+ $66.11
Discounts applied in cart/checkout.

Product Data:
Note:
  • Not 3A compatible, not included with base unit
Short
Part Number		 Long
Part Number		 Size Micron
Rating		 Square
Mesh		 Space Between
Wires		 Percent of
Open Area
BS20-100-200 BS202-100-200 1" - 2" 864 20 0.034" 46.2
BS20-250-300 BS202-250-300 2-1/2" - 3" 864 20 0.034" 46.2
BS40-100-200 BS402-100-200 1" - 2" 381 40 0.015" 36.0
BS40-250-300 BS402-250-300 2-1/2" - 3" 381 40 0.015" 36.0
BS60-100-200 BS602-100-200 1" - 2" 229 60 0.009" 30.3
BS60-250-300 BS602-250-300 2-1/2" - 3" 229 60 0.009" 30.3
BS80-100-200 BS802-100-200 1" - 2" 178 80 0.007" 31.4
BS80-250-300 BS802-250-300 2-1/2" - 3" 178 80 0.007" 31.4
BS100-100-200 BS1002-100-200 1" - 2" 140 100 0.006" 30.3
BS100-250-300 BS1002-250-300 2-1/2" - 3" 140 100 0.006" 30.3

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
