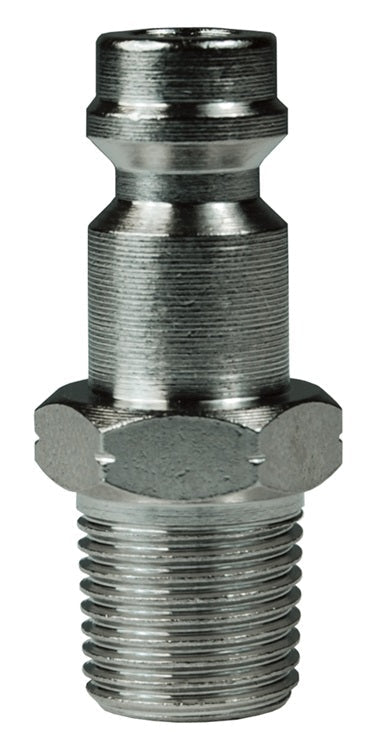

BR1M1-B-E-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | 1/8" Male NPT x 1/8" 21-Series Interchange | Plug | Brass
BR1M1-B-E-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | 1/8" Male NPT x 1/8" 21-Series Interchange | Plug | Brass

BR1M1-B-E-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | 1/8" Male NPT x 1/8" 21-Series Interchange | Plug | Brass

Minimum Order Quantity: 5 Units

Sale price$4.37

Dixon Valve & Coupling
Pneumatic Coupling: BR-Series 21-Series Interchange Plug (Male Threads)
Buy More, Save More!
Quantity Price Each
20–39 $4.11
40–79 $3.71
80+ $3.28
Discounts applied in cart/checkout.

Product Data:

Series:
  • BR Series
Shape:

Straight

Ends Configuration:
  • 1/8in Male BR-Series QD Interchange
  • 1/8in Male NPTF
Compatibility & Interchange:
  • Rectus 21KA, Tomco Series SC, CEJN Series 223
Construction:
  • Machined components are manufactured using solid brass bar stock.
  • Machined components are plated with chrome-over-nickel plating.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
BR-Series | 21-Series Interchange Plug (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Burst
Pressure
BR1M1-B-E-7 Plug/Male 1/8" 1/8" - 27 Male NPT Brass 1.06"
(26.9mm)		 0.65"
(16.5mm)		 9/16" 300 PSI 7000 PSI
BR1GM1-B-E-7 Plug/Male 1/8" 1/8" - 28 Male BSPP Brass 1.06"
(26.9mm)		 0.65"
(16.5mm)		 9/16" 300 PSI 7000 PSI
BR1M2-B-E-7 Plug/Male 1/8" 1/4" - 18 Male NPT Brass 1.20"
(30.5mm)		 0.72"
(18.3mm)		 5/8" 300 PSI 7000 PSI
BR1GM2-B-E-7 Plug/Male 1/8" 1/4" - 19 Male BSPP Brass 1.20"
(30.5mm)		 0.72"
(18.3mm)		 5/8" 300 PSI 7000 PSI
BR-Series | 21-Series Interchange Coupler (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Burst
Pressure
1BRM1-B-7 Socket/Female 1/8" 1/8" - 27 Male NPT Brass 1.49"
(37.8mm)		 0.65"
(16.5mm)		 9/16" 300 PSI 7000 PSI
1BRGM1-B-7 Socket/Female 1/8" 1/8" - 28 Male BSPP Brass 1.49"
(37.8mm)		 0.65"
(16.5mm)		 9/16" 300 PSI 7000 PSI
1BRM2-B-7 Socket/Female 1/8" 1/4" - 18 Male NPT Brass 1.61"
(40.9mm)		 0.72"
(18.3mm)		 5/8" 300 PSI 7000 PSI
1BRGM2-B-7 Socket/Female 1/8" 1/4" - 19 Male BSPP Brass 1.61"
(40.9mm)		 0.72"
(18.3mm)		 5/8" 300 PSI 7000 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
