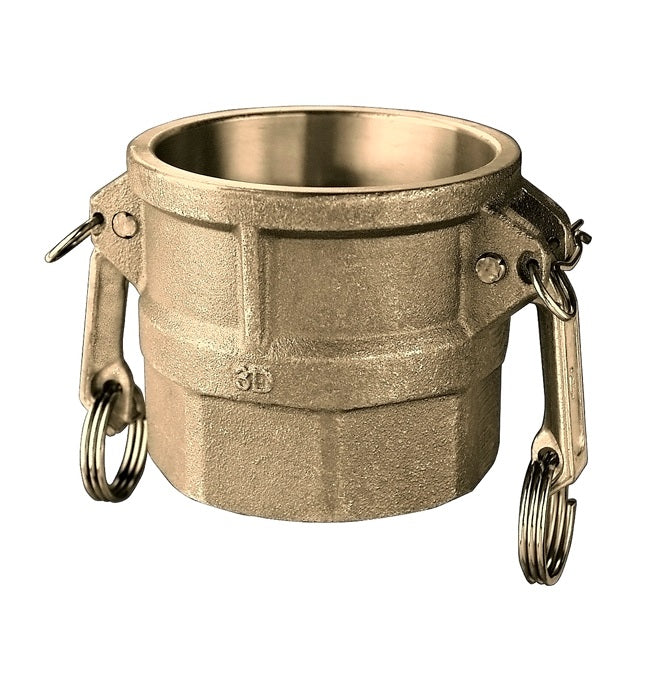

BR-D150 by Kuriyama | BR-D Series | Part D | Cam & Groove Adapter | 1-1/2" Coupler x 1-1/2" Female NPT | Brass
Buy more, save moreDiscounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Highly resistant to damage and corrosion.
- Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Brass alloy is specially designed for high tensile strength, impact resistance, and rigidity.
- Supplied with forged brass handles which results in less wear on connecting parts.
What are the Materials?
- ASTM brass alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
- Forged brass handles.
- 304 stainless steel handle pins and pull rings.
- Zinc-plated carbon steel safety clips.
- Buna-N gasket included.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification |
Weight Each (lbs) |
|---|---|---|---|---|
| BR-D050 | 1/2" | 250 PSI | B584 C85700 | 0.35 lbs |
| BR-D075 | 3/4" | 250 PSI | B584 C85700 | 0.51 lbs |
| BR-D100 | 1" | 250 PSI | B584 C85700 | 0.75 lbs |
| BR-D125 | 1-1/4" | 250 PSI | B584 C85700 | 1.12 lbs |
| BR-D150 | 1-1/2" | 250 PSI | B584 C85700 | 1.21 lbs |
| BR-D200 | 2" | 250 PSI | B584 C85700 | 1.43 lbs |
| BR-D250 | 2-1/2" | 150 PSI | B584 C85700 | 1.87 lbs |
| BR-D300 | 3" | 150 PSI | B584 C85700 | 3.13 lbs |
| BR-D400 | 4" | 150 PSI | B584 C85700 | 5.29 lbs |
| BR-D500 | 5" | 75 PSI | B584 C85700 | 5.62 lbs |
| BR-D600 | 6" | 75 PSI | B584 C85700 | 10.95 lbs |
Additional Product Data:
Series:
MAWP:
250
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
