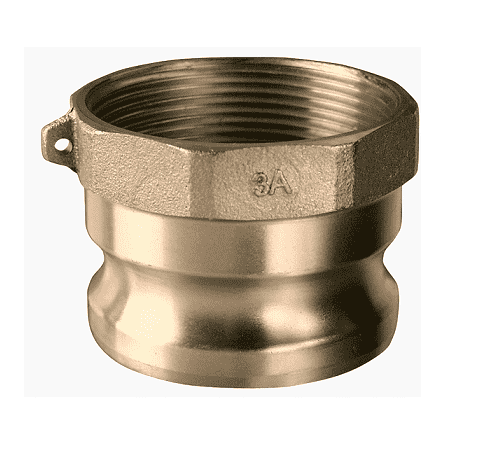

BR-A400 by Kuriyama | Quick-Acting Coupling | Part A | 4" Male Adapter x 4" Female NPT | Brass

BR-A400 by Kuriyama | Quick-Acting Coupling | Part A | 4" Male Adapter x 4" Female NPT | Brass

Sale price$142.59

Kuriyama Couplings™ - Quick-Acting Couplings - Part A - Male Adapter x Female NPT - Brass

Buy More, Save More!
Quantity Price Each
5–19 $134.03
20–59 $121.20
60+ $106.94
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type A

Ends Configuration:
  • 4in Male Cam & Groove
  • 4in Female NPT
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Brass alloy is specially designed for high tensile strength and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM B584 Grade C85700 brass alloy.
  • Forged brass handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
BR-A050 1/2" x 1/2" 0.15 lbs
BR-A075 3/4" x 3/4" 0.24 lbs.
BR-A100 1" x 1" 0.34 lbs.
BR-A125 1-1/4" x 1-1/4" 0.66 lbs.
BR-A150 1-1/2" x 1-1/2" 0.73 lbs.
BR-A200 2" x 2" 0.86 lbs.
BR-A250 2-1/2" x 2-1/2" 1.61 lbs.
BR-A300 3" x 3" 1.72 lbs.
BR-A400 4" x 4" 3.41 lbs.
BR-A500 5" x 5" 4.85 lbs.
BR-A600 6" x 6" 7.27 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
