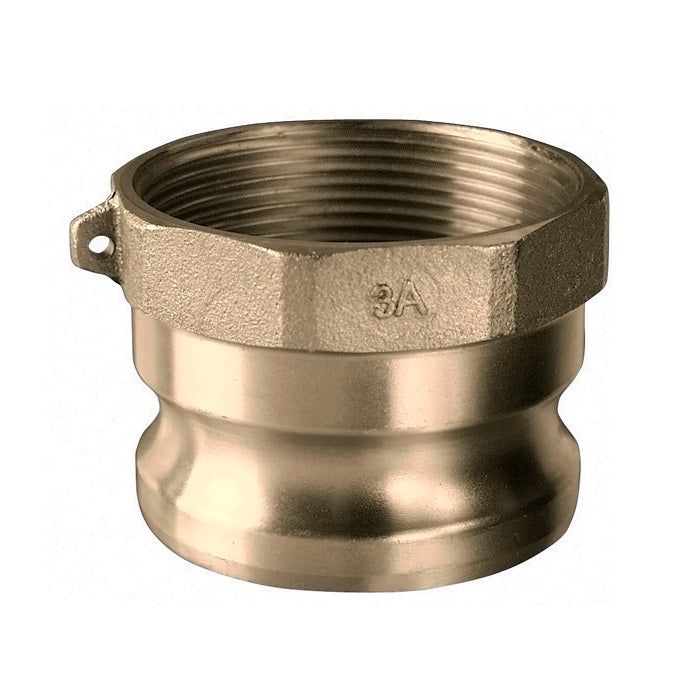

BR-A075 by Kuriyama | BR-A Series | Part A | Cam & Groove Adapter | 3/4" Adapter x 3/4" Female NPT | Brass
Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | BR-A Series | Part A | Adapter x Female NPT | Brass
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $15.90 |
| 40–79 | $14.38 |
| 80+ | $12.69 |
Discounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Highly resistant to damage and corrosion.
- Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Brass alloy is specially designed for high tensile strength, impact resistance, and rigidity.
What are the Materials?
- ASTM brass alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification |
Weight Each (lbs) |
|---|---|---|---|---|
| BR-A050 | 1/2" | 250 PSI | B584 C85700 | 0.15 lbs |
| BR-A075 | 3/4" | 250 PSI | B584 C85700 | 0.24 lbs |
| BR-A100 | 1" | 250 PSI | B584 C85700 | 0.34 lbs |
| BR-A125 | 1-1/4" | 250 PSI | B584 C85700 | 0.66 lbs |
| BR-A150 | 1-1/2" | 250 PSI | B584 C85700 | 0.73 lbs |
| BR-A200 | 2" | 250 PSI | B584 C85700 | 0.86 lbs |
| BR-A250 | 2-1/2" | 150 PSI | B584 C85700 | 1.61 lbs |
| BR-A300 | 3" | 150 PSI | B584 C85700 | 1.72 lbs |
| BR-A400 | 4" | 150 PSI | B584 C85700 | 3.41 lbs |
| BR-A500 | 5" | 75 PSI | B584 C85700 | 4.85 lbs |
| BR-A600 | 6" | 75 PSI | B584 C85700 | 7.27 lbs |
Product Data:
Series:
MAWP:
250
Shape:
Straight
Cam & Groove Type:
Type A
Ends Configuration:
Material(s):
