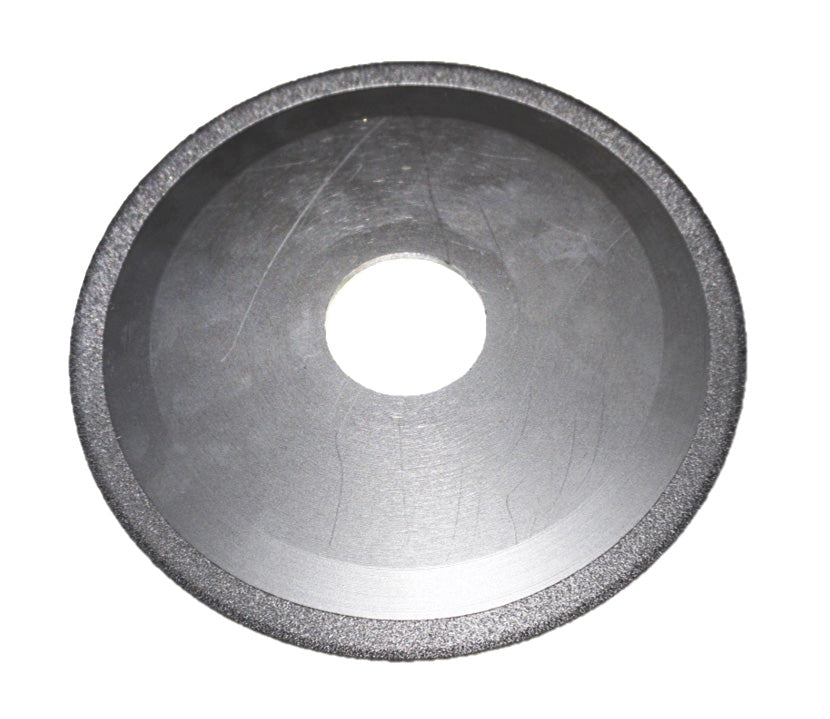

BLADE-DIA250 KuriCrimp™ by Kuriyama | BLADE-DIA Series | Diamond Replacement Blade for Hose Saws | 250mm OD | 40mm ID | 3mm Thickness

BLADE-DIA250 KuriCrimp™ by Kuriyama | BLADE-DIA Series | Diamond Replacement Blade for Hose Saws | 250mm OD | 40mm ID | 3mm Thickness

Sale price$2,562.01
Buy more, save moreDiscounts applied in cart/checkout.
BLADE-SER Series | Serrated Replacement Blades:
  • Serrations help dissipate heat, extending blade life and reducing smoke generation.
  • Acceptable for use with textile reinforced hoses.
  • CAUTION: Serrated Blades are not recommended for use with hoses with a steel cover and/or containing steel helical reinforcement.
BLADE-SMT Series | Smooth Replacement Blades:
  • Smooth blades are suitable for use with hoses with a steel cover and/or steel helical reinforcement.
BLADE-DIA Series | Diamond Replacement Blades:
  • Durable diamond coating greatly extends blade life.
  • Diamond blades are suitable for use with hoses with a steel cover and/or steel helical reinforcement.
CAUTIONARY STATEMENTS:
  • Blade sharpening should only be performed by the blade manufacturer. Ensure direction of blade rotation is correct as indicated by the arrow printed on the blade. When using a new blade or newly sharpened blade, make initial hose cuts at a low speed. A newly sharpened blade will cut very quickly, which at a high speed could lead to overheating, potentially damaging the blade.
  • Do not operate at excessive speeds that could potentially overwork the motor.
  • Do not move or rotate the hose during cutting.
  • Do not apply any solvents or lubricants to the blade.
  • When replacing the blade inspect for signs of wear, that the shaft rotates without vibrations and that the blade is perfectly perpendicular to the cutting surface. Before starting, actuate the hose pressing lever to ensure no interferences.
BLADE-SER Series | Serrated Replacement Blade
  Part Number Outside Diametermm Inside Diametermm Thicknessmm
BLADE-SER250 250mm 40mm 3mm
BLADE-SER350 350mm 50mm 3mm
BLADE-SER400 400mm 50mm 4mm
BLADE-SER520 520mm 50mm 4mm
BLADE-SMT Series | Smooth Replacement Blade
  Part Number Outside Diametermm Inside Diametermm Thicknessmm
BLADE-SMT250 250mm 40mm 3mm
BLADE-SMT350 350mm 50mm 3mm
BLADE-SMT400 400mm 50mm 4mm
BLADE-DIA Series | Diamond Replacement Blade
  Part Number Outside Diametermm Inside Diametermm Thicknessmm
BLADE-DIA250 250mm 40mm 3mm
BLADE-DIA350 350mm 50mm 3mm
BLADE-DIA400 400mm 50mm 4mm
BLADE-DIA520 520mm 50mm 4mm
