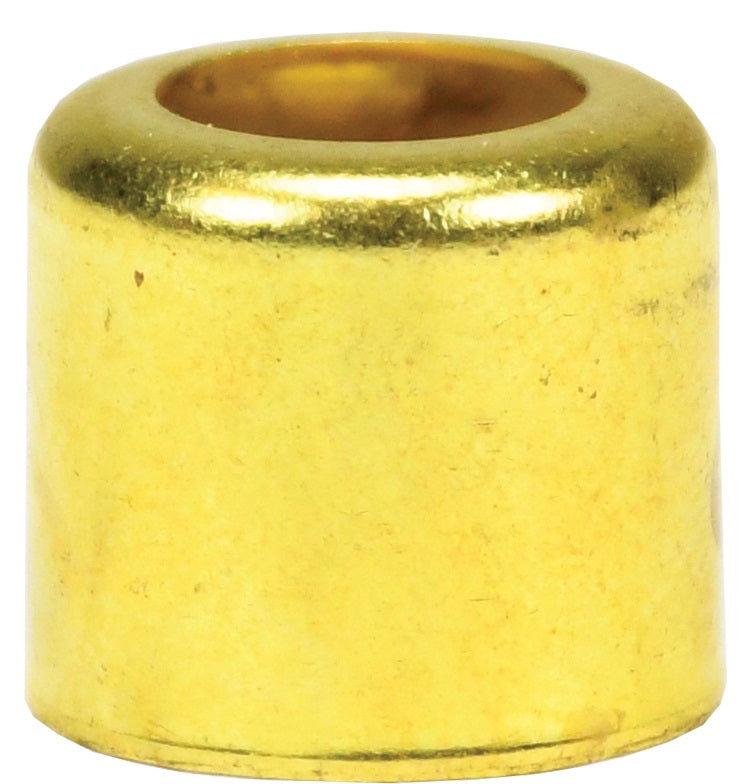

BFL600 by Dixon Valve | Hose Crimp Ferrule for Air & Fluid | 0.600" Ferrule ID | Brass | (Pack of 50)
Dixon Valve
Hose Crimp Ferrule for Air & Fluid
For use with medium weight air hose.
Package Quantity: 50 EA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $22.79 |
| 40–79 | $20.60 |
| 80+ | $18.18 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Material(s):
| Material: | |||
|---|---|---|---|
|
| Part Number | Ferrule ID | Ferrule Length | End Hole Size | Metal Gauge | Ribbed Die | Plain Die | Standard Ind. Pt Num. |
Previous Part Number |
|---|---|---|---|---|---|---|---|---|
| BFM478 | .478" | 11/16" | 21/64" | .024" | R41 | P41/ P42 | 4750 | 2004750C |
| BFM500 | .500" | 1" | 11/32" | .024" | R40 | P40 | 7322 | 2005005C |
| BFM525 | .525" | 1" | 3/8" | .024" | R39 | P39 | 7323 | 2005255C |
| BFM531 | .531" | 1" | 7/16" | .024" | R39 | P39 | 7324 | 2005310C |
| BFM562 | .562" | 1" | 7/16" | .024" | R37 | P38 | 7325 | 2005620C |
| BFM593 | .593" | 1" | 7/16" | .024" | R36 | P37 | 7326 | 2005930C |
| BFM625 | .625" | 1" | 7/16" | .024" | R35 | P36 | 7327 | 2006255C |
| BFM656 | .656" | 1" | 7/16" | .024" | R34 | P35 | 7328 | 2006560C |
| BFM687 | .687" | 1" | 1/2" | .024" | R33 | P34 | 7329 | 2006900C |
| BFM718 | .718" | 1" | 5/8" | .024" | R31 | P32 | 7330 | 2007180C |
| BFM718B | .718" | 1" | 1/2" | .024" | R31 | P32 | 7330B | - |
| BFM750 | .750" | 1" | 5/8" | .024" | R30 | P31 | 7331 | 2007505C |
| BFM750B | .750" | 1" | 1/2" | .024" | R30 | P31 | 7331B | - |
| BFM781 | .781" | 1" | 5/8" | .024" | R29 | P30 | 7332 | 2007810C |
| BFM781B | .781" | 1" | 1/2" | .024" | R29 | P30 | 7332B | - |
| BFM812 | .812" | 1" | 5/8" | .024" | R28 | P29 | 7333 | 2008120C |
| BFL380 | .380" | 1/2" | 17/64" | .016" | R44 | P45 | 622 | - |
| BFL400 | .400" | 15/32" | 17/64" | .020" | R44 | P44 | 619 | 2004000C |
| BFL410 | .410" | 1/2" | 17/64" | .016" | R43 | P44 | 620 | - |
| BFL450 | .450" | 9/16" | 11/32" | .016" | R41 | P42 | 769 | 2004530C |
| BFL500 | .500" | 1/2" | 11/32" | .016" | R40 | P41 | 624 | 2005000C |
| BFL525 | .525" | 1/2" | 11/32" | .016" | R39 | P40 | 625 | 2005250C |
| BFL548 | .548" | 31/64" | 3/8" | .015" | R38 | P39 | 626 | 2005500C |
| BFL564 | .564" | 3/4" | 3/8" | .019" | R37 | P38 | 3588 | - |
| BFL575 | .575" | 31/64" | 15/32" | .019" | R37 | P38 | KK | - |
| BFL600 | .600" | 1/2" | 1/2" | .019" | R36 | P37 | JJ | - |
| BFL625 | .625" | 1/2" | 1/2" | .019" | R35 | P36 | II | 2006250C |
| BFL650 | .650" | 1/2" | 1/2" | .019" | R34 | P35 | HH | 2006500C |
| BFL675 | .675" | 33/64" | 1/2" | .019" | R34 | P34 | GG | 2006750C |
| BFL725 | .725" | 17/32" | 1/2" | .019" | R31 | P32 | EE | 2007250C |
| BFL750 | .750" | 17/32" | 1/2" | .019" | R30 | P32 | DD | 2007500C |
| BFL775 | .775" | 17/32" | 1/2" | .016" | R31 | P31 | CC | 2007750C |
