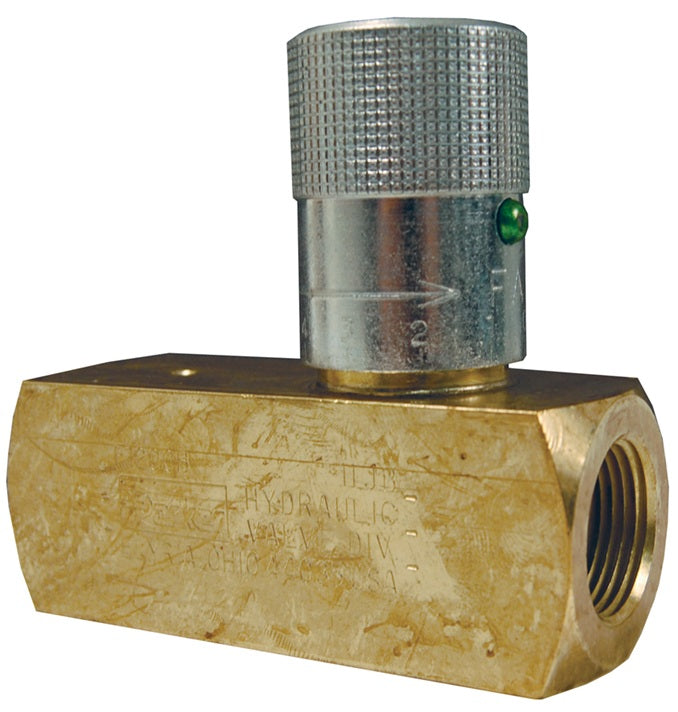

BFC200 by Dixon Valve | Series-F | Flow Control Valve | 1/8" Female NPTF | Brass

BFC200 by Dixon Valve | Series-F | Flow Control Valve | 1/8" Female NPTF | Brass

Sale price$95.62

Dixon Valve
Series-F | Flow Control Valve

Provides precision flow control and full shutoff in one flow direction; automatically allows unrestricted flow in the opposite direction.

Two-step needle for fine adjustments at low flow with first three turns of the adjusting knob; next three turns give full-open needle position and conventional throttling control.
Buy More, Save More!
Quantity Price Each
5–19 $89.88
20–59 $81.28
60+ $71.72
Discounts applied in cart/checkout.

Product Data:

Series:
  • Series-F
Shape:

Straight

Ends Configuration:
  • 1/8in Female NPT
  • 1/8in Female NPT
  • Some Ends Match
Features:
  • When flow is reversed the heavy-duty poppet/retainer permits full flow return capacity.
  • Color coded scale simplifies flow setting, resetting, adjusting, and return to an original flow.
  • A set screw locks the valve on any desired setting.
Material:
  • Brass
  • Seal: Nitrile
Specifications:
  • 1/8" - 3/4" maximum operating pressure: 2,000 PSI at ambient temperature 70°F (21°C), 1" 500 PSI at ambient temperature 70°F (21°C)
  • Operating Temperature Range: -20°F to 250°F (-29°C to 121°C)
  • Cracking pressure: 5 PSI
Part Number Female NPTF
BFC200 1/8"
BFC400 1/4"
BFC600 3/8"
BFC800 1/2"
BFC1200 3/4"
BFC1600 1"
