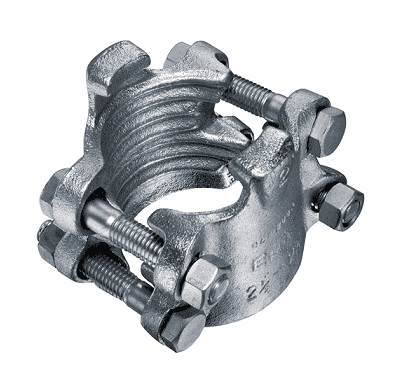

BC4-200B by Kuriyama | 4 Bolt Interlocking Hose Clamp | Size Range: 2-3/4" - 3-1/16" | Torque: 60 ft. lbs. | Zinc Plate
Kuriyama

BC4-200B by Kuriyama | 4 Bolt Interlocking Hose Clamp | Size Range: 2-3/4" - 3-1/16" | Torque: 60 ft. lbs. | Zinc Plate

Sale price$52.13

Kuriyama Couplings™ - Interlocking Bolt Clamps - 4 Bolt Hose Clamp - Zinc Plated

Product Data:

Material(s):
  • Zink-Plated Steel
Minimum Clamp I.D.:

2.75"

Maximum Clamp I.D.:

3.0625"
Applications:
  • Recommended for use with Ground Joint Couplings
  • For use with Kuriyama Hoses
Features:
  • N/A
Materials:
  • Zinc Plated
Part Number Size Range (in.) Torque (ft. lbs.) Weight (Lbs.)
BC4-100 1-17/32" - 1-23/32" 21 ft. Lbs. 1.50 lbs
BC4-100A 1-13/32" - 1-9/16" 21 ft. Lbs. 1.54 lbs
BC4-100B 1-11/16" - 1-27/32" 21 ft. Lbs. 1.68 lbs
BC4-100C 1-7/8" - 2-1/16" 21 ft. Lbs. 1.90 lbs
BC4-125 2-1/16" - 2-1/4" 40 ft. Lbs. 2.36 lbs
BC4-150 2" - 2-17/32" 40 ft. Lbs. 2.40 lbs
BC4-150A 2-3/32" - 2-9/32" 40 ft. Lbs. 2.56 lbs
BC4-150B 2-1/4" - 2-7/16" 40 ft. Lbs. 2.78 lbs
BC4-150C 2-15/32" - 2-23/32" 40 ft. Lbs. 2.67 lbs
BC4-200 2-11/32" - 2-17/32" 60 ft. Lbs. 3.04 lbs
BC4-200A 2-1/2" - 2-25/32" 60 ft. Lbs. 2.84 lbs
BC4-200B 2-3/4" - 3-1/16" 60 ft. Lbs. 3.99 lbs
BC4-200C 3-3/32" - 3-7/16" 60 ft. Lbs. 3.97 lbs
BC4-250 3-1/2" - 3-15/16" 150 ft. Lbs. 6.86 lbs
BC4-300 3-1/2" - 3-15/16" 150 ft. Lbs. 7.45 lbs
BC4-300A 3-13/16" - 4-1/16" 150 ft. Lbs. 7.89 lbs
BC4-300B 4-1/16" - 4-7/16" 200 ft. Lbs. 10.19 lbs
BC4-300C 4-1/4" - 4-13/16" 200 ft. Lbs. 10.30 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
