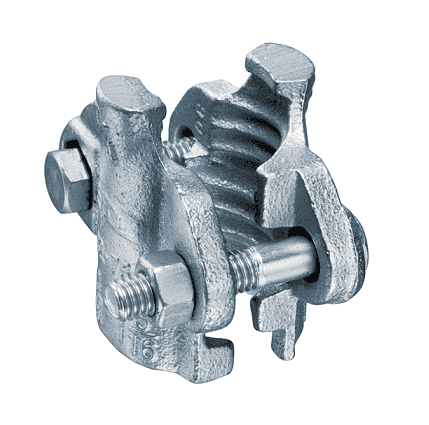

BC2-075 by Kuriyama | 2 Bolt Interlocking Hose Clamp | Size Range: 1-5/32" - 1-9/32" | Torque: 21 ft. lbs. | Zinc Plate

BC2-075 by Kuriyama | 2 Bolt Interlocking Hose Clamp | Size Range: 1-5/32" - 1-9/32" | Torque: 21 ft. lbs. | Zinc Plate

Sale price$10.63

Kuriyama Couplings™ - Interlocking Bolt Clamps - 2 Bolt Hose Clamp - Zinc Plated

Buy More, Save More!
Quantity Price Each
10–39 $9.99
40–79 $9.04
80+ $7.97
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Zink-Plated Steel
Minimum Clamp I.D.:

1.15625"

Maximum Clamp I.D.:

1.28125"
Applications:
  • Recommended for use with Ground Joint Couplings
  • For use with Kuriyama Hoses
Features:
  • Torque Rating in Ft. lbs. Do not Lubricate nuts and bolts.
Materials:
  • Zinc Plated
Part Number Size Range (in.) Torque (ft. lbs.) Weight (Lbs.)
BC2-050 13/16" - 15/16" 6 ft. Lbs. 0.31 lbs
BC2-050A 15/16" - 1-1/16" 12 ft. Lbs. 0.44 lbs
BC2-050B 1-1/16" - 1-3/16" 12 ft. Lbs. 0.48 lbs
BC2-075 1-5/32" - 1-9/32" 12 ft. Lbs. 0.73 lbs
BC2-075A 1-3/16" - 1-5/16" 21 ft. Lbs. 0.79 lbs
BC2-050B 1-5/16" - 1-1/2" 21 ft. Lbs. 0.88 lbs
BC2-075C 1-1/2" - 1-11/16" 21 ft. Lbs. 1.15 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
