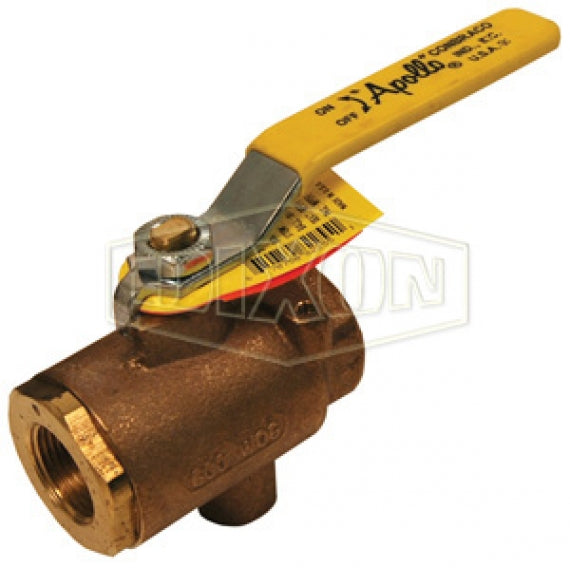

BBV50VT by Dixon Valve | Ball Valve with NPT Tap for Drain | Full Port | 1/2" Female NPT x 1/2" Female NPT | Bronze

BBV50VT by Dixon Valve | Ball Valve with NPT Tap for Drain | Full Port | 1/2" Female NPT x 1/2" Female NPT | Bronze

Sale price$75.61

Dixon Valve & Coupling
Ball Valve with NPT Tap for Drain | Bronze

Recommended for water and air service.
Buy More, Save More!
Quantity Price Each
5–19 $71.07
20–59 $64.27
60+ $56.71
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Female NPT
  • 1/2in Female NPT
  • Some Ends Match
Material(s):
  • Bronze
Features:
  • Blow-out proof stem.
  • Adjustable packing gland.
  • Auto-drain / auto-vent.
  • 1/4" NPT tapped port provides additional options such as an air venting elbow or noise muffler.
  • Vent downstream air in accordance with OSHA regulations for pneumatic systems.
Materials:
  • Body: Bronze.
  • RTFE seats and stuffing box ring.
  • Chromium plated ball.
Specifications:
  • Pressure rating: 125 PSI CWP.
Part Number Female NPT x Female NPT Port
BBV25VT 1/4" Full
BBV38VT 3/8" Full
BBV50VT 1/2" Full
BBV75VT 3/4" Full
BBV100VT 1" Full

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
