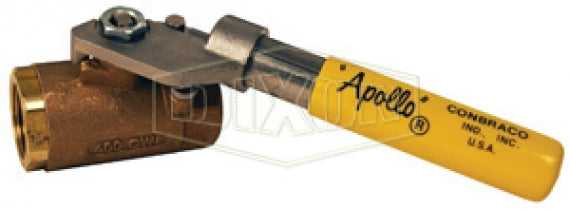

BBV200SR by Dixon Valve | "Deadman" Spring Return Handle Ball Valve | Standard Port | 2" Female NPT x 2" Female NPT | Brass

BBV200SR by Dixon Valve | "Deadman" Spring Return Handle Ball Valve | Standard Port | 2" Female NPT x 2" Female NPT | Brass

Sale price$671.38

Dixon Valve & Coupling
"Deadman" Spring Return Handle Ball Valve | Brass
Buy More, Save More!
Quantity Price Each
5–14 $631.10
15–29 $570.67
30+ $503.54
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 2in Female NPT
  • 2in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Blow-out proof stem design.
  • Adjustable packing gland.
  • Spring return closes valve when not held open.
Materials:
  • Stainless steel lever.
  • Chromium plated ball.
  • RTFE seats and stuffing box ring.
Specifications:
  • Operating torque approximately three times standard valve torque.
  • Pressure rating: 600 PSI CWP; 150 PSI saturated steam.
  • Vacuum service to 29 inches Hg.
Part Number Female NPT x Female NPT Port
BBV50SR 1/2" Full
BBV75SR 3/4" Standard
BBV100SR 1" Standard
BBV150SR 1-1/2" Standard
BBV200SR 2" Standard
