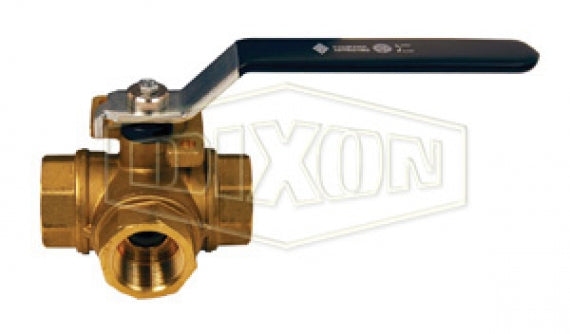

BBV100DTW by Dixon Valve | 3-Way Diverting Ball Valve | T Flow | Standard Port | 1" Female NPT x 1" Female NPT x 1" Female NPT | Brass

BBV100DTW by Dixon Valve | 3-Way Diverting Ball Valve | T Flow | Standard Port | 1" Female NPT x 1" Female NPT x 1" Female NPT | Brass

Sale price$195.06

Dixon Valve & Coupling
3-Way Diverting Ball Valve | T Flow | Brass
Buy More, Save More!
Quantity Price Each
5–19 $183.36
20–59 $165.80
60+ $146.30
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 1in Female NPT
  • 1in Female NPT
  • 1in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Blow-out proof stem.
  • Adjustable stem packing.
Materials:
  • Body: Brass.
  • Chrome plated brass ball.
  • PTFE seats, seals, and thrust washer.
Specifications:
  • Maximum temperature: 366°F (186°C).
  • Pressure rating: 400 PSI WOG; 100 PSI saturated steam.
Note:
  • 1/4 turn handle can be adjusted to any orientation. Notches on the valve stem reflect the three openings on the ball.
Part Number Female NPT x Female NPT x Female NPT Port
BBV50DTW 1/2" Standard
BBV75DTW 3/4" Standard
BBV100DTW 1" Standard
BBV125DTW 1-1/4" Standard
BBV150DTW 1-1/2" Standard
BBV200DTW 2" Standard

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
