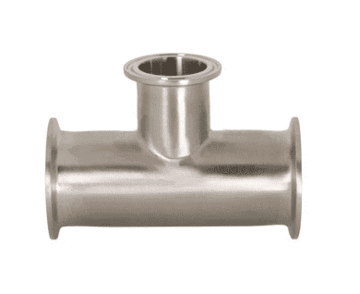

B7RMP-R600200 Dixon Valve 316L Stainless Steel Sanitary Clamp Reducing Tee - 6" x 2" Tube OD
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Part Number | Tube OD | Dimensions
|
Weight (Lbs.) | ||
|---|---|---|---|---|---|
| A | B | C | |||
| B7RMP-R7550 | 3/4" x 1/2" | - | 2.500" | 2.500" | 0.3050 |
| B7RMP-R10050 | 1" x 1/2" | - | 2.630" | 2.630" | 0.5950 |
| B7RMP-R10075 | 1" x 3/4" | 5.250" | 2.625" | 2.625" | 0.6150 |
| B7RMP-R15050 | 1-1/2" x 1/2" | 5.750" | 2.875" | 2.875" | 0.6950 |
| B7RMP-R15075 | 1-1/2" x 3/4" | - | 2.880" | 2.880" | 0.7000 |
| B7RMP-R150100 | 1-1/2" x 1" | 4.312" | 2.156" | 1.875" | 0.6500 |
| B7RMP-R20050 | 2" x 1/2" | 6.750" | 3.375" | 3.125" | 0.9850 |
| B7RMP-R20075 | 2" x 3/4" | 6.750" | 3.375" | 3.125" | 1.0150 |
| B7RMP-R200100 | 2" x 1" | 5.125" | 2.562" | 2.125" | 0.8580 |
| B7RMP-R200150 | 2" x 1-1/2" | 5.125" | 2.562" | 2.406" | 0.8200 |
| B7RMP-R250150 | 2-1/2" x 1-1/2" | 5.688" | 2.844" | 2.812" | 1.1355 |
| B7RMP-R250200 | 2-1/2" x 2" | 5.688" | 2.844" | 2.812" | 1.2100 |
| B7RMP-R300150 | 3" x 1-1/2" | 6.188" | 3.093" | 2.906" | 1.3300 |
| B7RMP-R300200 | 3" x 2" | 6.188" | 3.093" | 3.063" | 1.4500 |
| B7RMP-R300250 | 3" x 2-1/2" | - | 3.090" | 3.090" | 1.4900 |
| B7RMP-R400150 | 4" x 1-1/2" | - | 4.060" | 3.410" | 2.865 |
| B7RMP-R400200 | 4" x 2" | - | 4.060" | 3.560" | 2.7050 |
| B7RMP-R400250 | 4" x 2-1/2" | - | 4.060" | 3.590" | 3.0960 |
| B7RMP-R400300 | 4" x 3" | - | 4.060" | 3.590" | 2.6750 |
| B7RMP-R600200 | 6" x 2" | - | 6.500" | 6.000" | 14.4600 |
