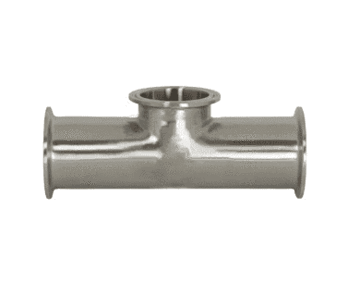

B7MPS-G100 Dixon Valve 304 Stainless Steel Sanitary Short Outlet Clamp Tee - 1" Tube OD
Dixon Sanitary Fittings Sanitary Clamp Tee - Short Outlet Clamp Tee - 304 Stainless Steel
3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $44.43 |
| 40–79 | $40.18 |
| 80+ | $35.45 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
| Part Number | Tube OD | Dimensions
|
Weight (Lbs.) | |||
|---|---|---|---|---|---|---|
| A | B | ID | OD | |||
| B7MPS-G100 | 1" | 4.75" | 1.13" | 1.00" | 0.87" | 0.6000 |
| B7MPS-G150 | 1-1/2" | 5.50" | 1.38" | 1.50" | 1.37" | 0.6400 |
| B7MPS-G200 | 2" | 7.00" | 1.63" | 2.00" | 1.87" | 1.1600 |
| B7MPS-G250 | 2-1/2" | 7.00" | 1.88" | 2.50" | 2.37" | 1.8000 |
| B7MPS-G300 | 3" | 7.50" | 2.13" | 3.00" | 2.87" | 1.9000 |
| B7MPS-G400 | 4" | 9.00" | 2.75" | 4.00" | 3.83" | 3.8000 |
