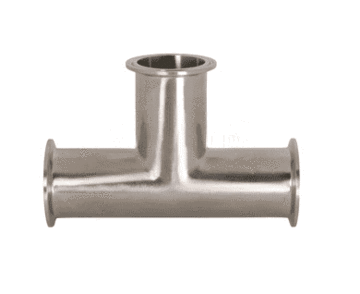

B7MP-R1000 Dixon Valve 316L Stainless Steel Sanitary Clamp Tee - 10" Tube OD
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Part Number | Tube OD | Dimensions
|
Weight (Lbs.) | |||
|---|---|---|---|---|---|---|
| A | B | ID | OD | |||
| B7MP-R50 | 1/2" | 4.75" | 2.38" | 0.37" | 0.50" | 0.3110 |
| B7MP-R75 | 3/4" | 5.00" | 2.50" | 0.62" | 0.75" | 0.3215 |
| B7MP-R100 | 1" | 4.75" | 2.38" | 0.87" | 1.00" | 0.6900 |
| B7MP-R150 | 1-1/2" | 5.50" | 2.75" | 1.37" | 1.50" | 0.7300 |
| B7MP-R200 | 2" | 7.00" | 3.50" | 1.87" | 2.00" | 1.1800 |
| B7MP-R250 | 2-1/2" | 7.00" | 3.50" | 2.37" | 2.50" | 1.4850 |
| B7MP-R300 | 3" | 7.50" | 3.75" | 2.87" | 3.00" | 2.5100 |
| B7MP-R400 | 4" | 9.00" | 4.50" | 3.83" | 4.00" | 3.8300 |
| B7MP-R600 | 6" | 13.00" | 6.50" | 5.78" | 6.00" | 9.0900 |
| B7MP-R800 | 8" | 15.75" | 7.88" | - | 8.00 | 13.9200 |
| B7MP-R1000 | 10" | - | - | - | 10.00" | 18.0000 |
