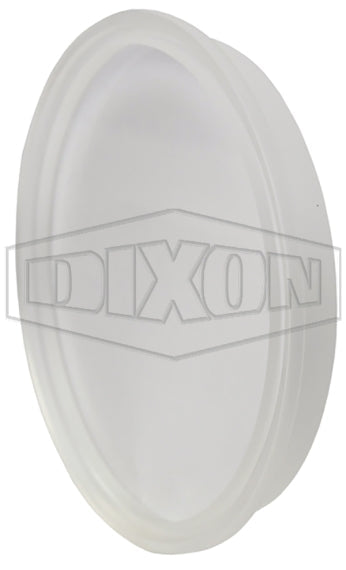

B5416MP-A100150 by Dixon Valve | Sanitary Sight Glass End Cap | Tube OD 1" - 1-1/2" | Acrylic Plastic
Dixon Valve - Sanitary Sight Glass | Acrylic Sight Glass End Cap
For use on any line with a clamp and gasket.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $62.30 |
| 40–79 | $56.34 |
| 80+ | $49.71 |
Discounts applied in cart/checkout.
Product Data:
| Specifications: | |||
|---|---|---|---|
|
| Part Number | Tube OD | Dimensions |
|||
|---|---|---|---|---|---|
| A | B | C | D | ||
| B5416MP-A100150 | 1" - 1-1/2" | 1.98" | 1.72" | 1.68" | 0.50" |
| B5416MP-A200 | 2" | 2.52" | 2.22" | 2.19" | 0.50" |
| B5416MP-A250 | 2-1/2" | 3.05" | 2.78" | 2.71" | 0.50" |
| B5416MP-A300 | 3" | 3.58" | 3.28" | 3.22" | 0.50" |
| B5416MP-A400 | 4" | 4.68" | 4.34" | 4.26" | 0.50" |
| B5416MP-A600 | 6" | 6.57" | 6.18" | 6.13" | 0.50" |
