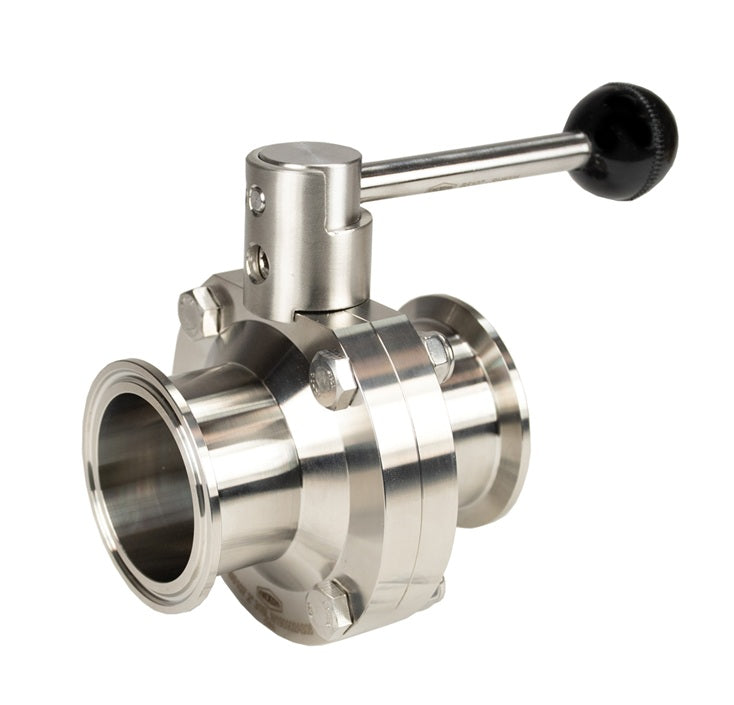

B5107E300CC-A Dixon Valve 3" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Pull Handle - EPDM Seats

B5107E300CC-A Dixon Valve 3" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Pull Handle - EPDM Seats

Sale price$421.89

Dixon Sanitary Valves
Clamp End Butterfly Valve with Pull Handle - [A] | 316L Stainless Steel with EPDM Seats
Buy More, Save More!
Quantity Price Each
5–14 $396.58
15–29 $358.61
30+ $316.42
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3in Sanitary Clamp End
  • 3in Sanitary Clamp End
  • Some Ends Match
Material(s):
  • 316L Stainless Steel
Features:
  • Robust disc stem.
  • Bi-directional flow.
  • Self lubricating seal.
  • Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification.
  • 100% hydraulic tested/inspected.
Materials:
  • Product contact material: 316L stainless steel.
  • Seat: EPDM.
  • Seat lubricant: MOLYKOTE® 111.
Sealing Material:
  • Vacuum rating: 0.4 inches Hg at 68°F (20°C).
  • Operating temperature range: 15°F to 200°F (-9°C to 93°C).
Part Number Size Dimensions

A
(in)		 B
(in)		 C
(in)		 D
(in)		 E
(in)
B5107E050CC-A 1/2" 3.50" 0.90" 3.10" 2.60" 4.60"
B5107E075CC-A 3/4" 3.50" 0.90" 3.10" 2.60" 4.60"
B5107E100CC-A 1" 3.50" 0.90" 3.10" 2.60" 4.60"
B5107E150CC-A 1-1/2" 3.50" 0.90" 3.10" 2.60" 4.60"
B5107E200CC-A 2" 3.80" 0.90" 3.90" 3.00" 4.60"
B5107E250CC-A 2-1/2" 3.80" 0.90" 4.60" 3.40" 4.60"
B5107E300CC-A 3" 4.10" 1.20" 5.20" 3.50" 6.50"
B5107E400CC-A 4" 4.80" 1.20" 6.70" 4.30" 6.50"
B5107E600CC-A 6" 5.50" 1.20" 8.50" 5.60" 11.70"
B5107E800CC-A 8" 5.00" 1.20" 11.20" 7.80" 18.10"
