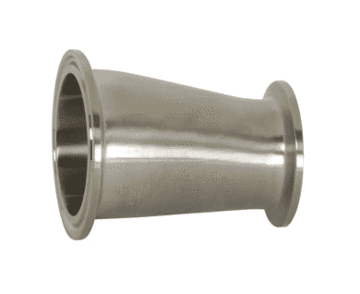

B3214MP-G800600 Dixon Valve 304 Stainless Steel Sanitary Clamp Eccentric Reducer - 8" x 6" Tube OD
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Features: | |||
|---|---|---|---|
|
| Part Number | Tube OD | Dimensions  |
Weight (Lbs.) | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | WT1 | WT2 | |||
| B3214MP-G150100 | 1-1/2" x 1" | 3.00" | 1.50" | 1.00" | 0.07" | 0.07" | 0.3900 |
| B3214MP-G200100 | 2" x 1" | 5.00" | 2.00" | 1.00" | 0.07" | 0.07" | 0.6100 |
| B3214MP-G200150 | 2" x 1-1/2" | 3.00" | 2.00" | 1.50" | 0.07" | 0.07" | 0.3800 |
| B3214MP-G250150 | 2-1/2" x 1-1/2" | 5.00" | 2.50" | 1.50" | 0.07" | 0.07" | 0.6400 |
| B3214MP-G250200 | 2-1/2" x 2" | 3.00" | 2.50" | 2.00" | 0.07" | 0.07" | 0.5500 |
| B3214MP-G300100 | 3" x 1" | 9.00" | 3.00" | 1.00" | 0.07" | 0.07" | 3.0000 |
| B3214MP-G300150 | 3" x 1-1/2" | 7.00" | 3.00" | 1.50" | 0.07" | 0.07" | 1.0650 |
| B3214MP-G300200 | 3" x 2" | 5.00" | 3.00" | 2.00" | 0.07" | 0.07" | 0.9600 |
| B3214MP-G300250 | 3" x 2-1/2" | 3.00" | 3.00" | 2.50" | 0.07" | 0.07" | 0.6500 |
| B3214MP-G400150 | 4" x 1-1/2" | 11.13" | 4.00" | 1.50" | 0.08" | 0.07" | 2.5400 |
| B3214MP-G400200 | 4" x 2" | 9.13" | 4.00" | 2.00" | 0.08" | 0.07" | 2.2550 |
| B3214MP-G400250 | 4" x 2-1/2" | 7.13" | 4.00" | 2.50" | 0.08" | 0.07" | 2.0600 |
| B3214MP-G400300 | 4" x 3" | 5.13" | 4.00" | 3.00" | 0.08" | 0.07" | 1.5800 |
| B3214MP-G600300 | 6" x 3" | 6.88" | 6.00" | 3.00" | 0.11" | 0.07" | 3.3650 |
| B3214MP-G600400 | 6" x 4" | 7.00" | 6.00" | 4.00" | 0.11" | 0.08" | 3.5300 |
| B3214MP-G800400 | 8" x 4" | 7.50" | 8.00" | 4.00" | 0.11" | 0.08" | 5.5000 |
| B3214MP-G800600 | 8" x 6" | 7.75" | 8.00" | 6.00" | 0.11" | 0.11" | 5.8100 |
