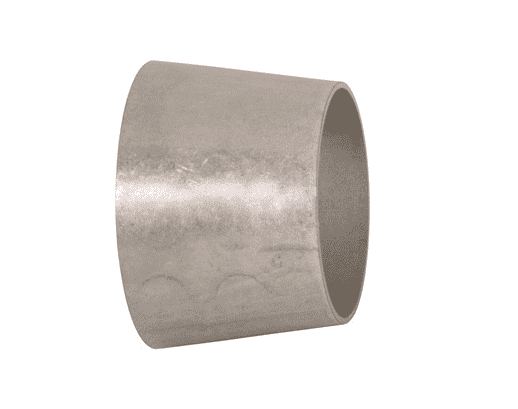

B31W-R10050U Dixon Valve 316L Stainless Steel Sanitary Unpolished Concentric Weld Reducer - 1" x 1/2" Tube OD
Dixon Sanitary Fittings Sanitary Unpolished Concentric Weld Reducers - 316L Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $22.37 |
| 40–79 | $20.23 |
| 80+ | $17.85 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Part Number | Tube OD | Dimensions |
Weight(Lbs.) | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||
| B31W-R7550U | 3/4" x 1/2" | 1.00" | 0.50" | 0.75" | 0.07" | 0.07" | 0.0350 |
| B31W-R10050U | 1" x 1/2" | 2.00" | 0.50" | 1.00" | 0.07" | 0.07" | 0.0400 |
| B31W-R10075U | 1" x 3/4" | 1.00" | 0.75" | 1.00" | 0.07" | 0.07" | 0.0495 |
| B31W-R15050U | 1-1/2" x 1/2" | 4.00" | 0.50" | 1.50" | 0.07" | 0.07" | 0.2250 |
| B31W-R15075U | 1-1/2" x 3/4" | 3.00" | 0.75" | 1.50" | 0.07" | 0.07" | 0.2000 |
| B31W-R150100U | 1-1/2" x 1" | 2.00" | 1.00" | 1.50" | 0.07" | 0.07" | 0.1615 |
| B31W-R20075U | 2" x 3/4" | 5.00" | 0.75" | 2.00" | 0.07" | 0.07" | 0.4050 |
| B31W-R200100U | 2" x 1" | 4.00" | 1.00" | 2.00" | 0.07" | 0.07" | 0.3500 |
| B31W-R200150U | 2" x 1-1/2" | 2.00" | 1.50" | 2.00" | 0.07" | 0.07" | 0.2200 |
| B31W-R250150U | 2-1/2" x 1-1/2" | 4.00" | 1.50" | 2.50" | 0.07" | 0.07" | 0.4950 |
| B31W-R250200U | 2-1/2" x 2" | 2.00" | 2.00" | 2.50" | 0.07" | 0.07" | 0.2600 |
| B31W-R300100U | 3" x 1" | 8.00" | 1.00" | 3.00" | 0.07" | 0.07" | 0.9900 |
| B31W-R300150U | 3" x 1-1/2" | 6.00" | 1.50" | 3.00" | 0.07" | 0.07" | 1.1050 |
| B31W-R300200U | 3" x 2" | 4.00" | 2.00" | 3.00" | 0.07" | 0.07" | 0.6035 |
| B31W-R300250U | 3" x 2-1/2" | 2.00" | 2.50" | 3.00" | 0.07" | 0.07" | 0.3650 |
| B31W-R400150U | 4" x 1-1/2" | 10.00" | 1.50" | 4.00" | 0.08" | 0.07" | 3.0000 |
| B31W-R400200U | 4" x 2" | 8.00" | 2.00" | 4.00" | 0.08" | 0.07" | 3.0000 |
| B31W-R400250U | 4" x 2-1/2" | 6.00" | 2.50" | 4.00" | 0.08" | 0.07" | 1.2300 |
| B31W-R400300U | 4" x 3" | 4.00" | 3.00" | 4.00" | 0.08" | 0.07" | 0.9655 |
| B31W-R600300U | 6" x 3" | 5.50" | 3.00" | 6.00" | 0.11" | 0.07" | 2.3400 |
| B31W-R600400U | 6" x 4" | 5.50" | 4.00" | 6.00" | 0.11" | 0.08" | 2.5550 |
| B31W-R800400U | 8" x 4" | 6.00" | 4.00" | 8.00" | 0.11" | 0.08" | 3.8500 |
| B31W-R800600U | 8" x 6" | 6.00" | 6.00" | 8.00" | 0.11" | 0.11" | 4.1250 |
| B31W-R12001000U | 12" x 10" | - | - | - | - | - | 14.0000 |
