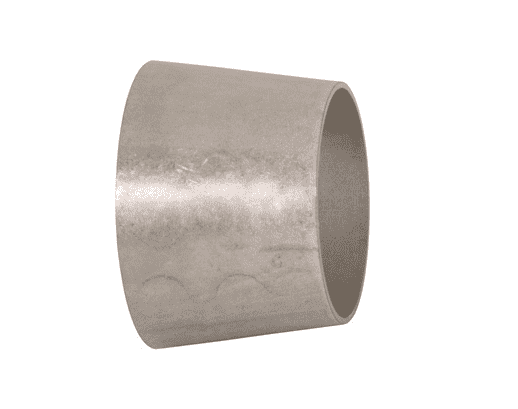

B31W-G12001000U Dixon Valve 304 Stainless Steel Sanitary Unpolished Concentric Weld Reducer - 12" x 10" Tube OD
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Part Number | Tube OD | Dimensions |
Weight(Lbs.) | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||
| B31W-G10050U | 1" x 1/2" | 2.00" | 0.50" | 1.00" | 0.07" | 0.07" | 0.0700 |
| B31W-G150100U | 1-1/2" x 1" | 2.00" | 1.00" | 1.50" | 0.07" | 0.07" | 0.1385 |
| B31W-G200100U | 2" x 1" | 4.00" | 1.00" | 2.00" | 0.07" | 0.07" | 0.3315 |
| B31W-G200150U | 2" x 1-1/2" | 2.00" | 1.50" | 2.00" | 0.07" | 0.07" | 0.2300 |
| B31W-G250150U | 2-1/2" x 1-1/2" | 4.00" | 1.50" | 2.50" | 0.07" | 0.07" | 0.4590 |
| B31W-G250200U | 2-1/2" x 2" | 2.00" | 2.00" | 2.50" | 0.07" | 0.07" | 0.2565 |
| B31W-G300100U | 3" x 1" | 8.00" | 1.00" | 3.00" | 0.07" | 0.07" | 0.7300 |
| B31W-G300150U | 3" x 1-1/2" | 6.00" | 1.50" | 3.00" | 0.07" | 0.07" | 0.8020 |
| B31W-G300200U | 3" x 2" | 4.00" | 2.00" | 3.00" | 0.07" | 0.07" | 0.6600 |
| B31W-G300250U | 3" x 2-1/2" | 2.00" | 2.50" | 3.00" | 0.07" | 0.07" | 0.3500 |
| B31W-G400150U | 4" x 1-1/2" | 10.00" | 1.50" | 4.00" | 0.08" | 0.07" | 1.8450 |
| B31W-G400200U | 4" x 2" | 8.00" | 2.00" | 4.00" | 0.08" | 0.07" | 1.5710 |
| B31W-G400250U | 4" x 2-1/2" | 6.00" | 2.50" | 4.00" | 0.08" | 0.07" | 1.2550 |
| B31W-G400300U | 4" x 3" | 4.00" | 3.00" | 4.00" | 0.08" | 0.07" | 1.1300 |
| B31W-G600200U | 6" x 2" | 5.50" | 2.00" | 6.00" | 0.11" | 0.07" | 8.0000 |
| B31W-G600300U | 6" x 3" | 5.50" | 3.00" | 6.00" | 0.11" | 0.07" | 2.2200 |
| B31W-G600400U | 6" x 4" | 5.50" | 4.00" | 6.00" | 0.11" | 0.08" | 2.7300 |
| B31W-G800400U | 8" x 4" | 6.00" | 4.00" | 8.00" | 0.11" | 0.08" | 3.3600 |
| B31W-G800600U | 8" x 6" | 6.00" | 6.00" | 8.00" | 0.11" | 0.11" | 4.8000 |
| B31W-G1000600U | 10" x 6" | - | - | - | - | - | 12.0000 |
| B31W-G1000800U | 10" x 8" | - | - | - | - | - | 6.9500 |
| B31W-G1200800U | 12" x 8" | - | - | - | - | - | 7.5850 |
| B31W-G12001000U | 12" x 10" | - | - | - | - | - | 12.0000 |
