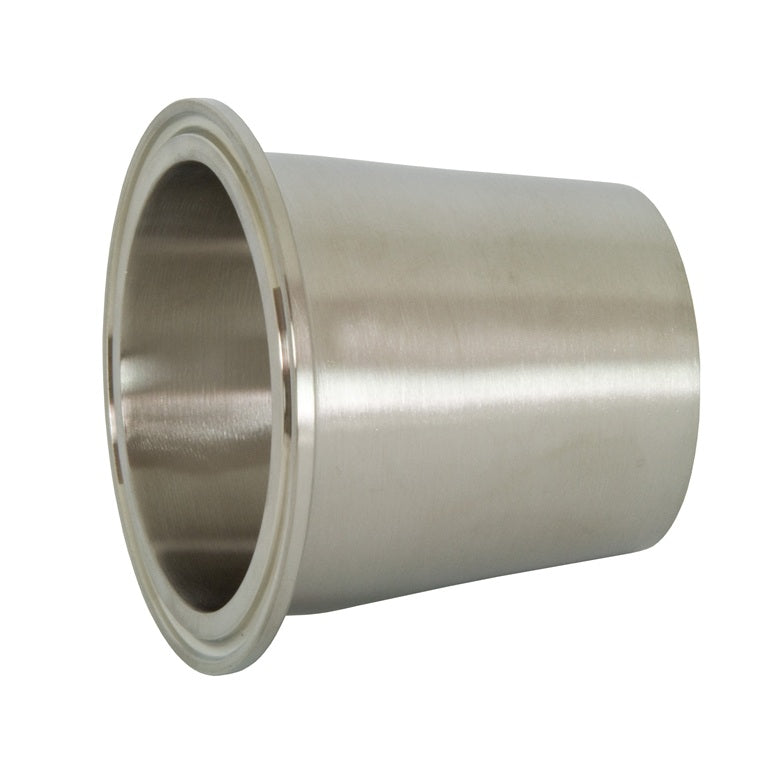

B31M-G600400 Dixon Valve Polished Concentric Clamp x Weld Reducer - 6" x 4" Tube OD - 304 Stainless Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Features: | |||
|---|---|---|---|
|
| 304 Stainless Steel Part Number |
315L Stainless Steel Part Number |
Tube OD | Dimensions  |
||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||
| - | B31M-R7550 | 3/4" x 1/2" | 1.50" | 0.50" | 0.75" | 0.065" | 0.065" |
| - | B31M-R10050 | 1" x 1/2" | 2.50" | 0.50" | 1.00" | 0.065" | 0.065" |
| - | B31M-R10075 | 1" x 3/4" | 1.50" | 0.75" | 1.00" | 0.065" | 0.065" |
| - | B31M-R15050 | 1-1/2" x 1/2" | 4.50" | 0.50" | 1.50" | 0.065" | 0.065" |
| - | B31M-R15075 | 1-1/2" x 3/4" | 3.50" | 0.75" | 1.50" | 0.065" | 0.065" |
| B31M-G150100 | B31M-R150100 | 1-1/2" x 1" | 2.50" | 1.00" | 1.50" | 0.065" | 0.065" |
| B31M-G200100 | B31M-R200100 | 2" x 1" | 4.50" | 1.00" | 2.00" | 0.065" | 0.065" |
| B31M-G200150 | B31M-R200150 | 2" x 1-1/2" | 2.50" | 1.50" | 2.00" | 0.065" | 0.065" |
| B31M-G250150 | B31M-R250150 | 2-1/2" x 1-1/2" | 4.50" | 1.50" | 2.50" | 0.065" | 0.065" |
| B31M-G250200 | B31M-R250200 | 2-1/2" x 2" | 2.50" | 2.00" | 2.50" | 0.065" | 0.065" |
| B31M-G300200 | B31M-R300200 | 3" x 2" | 4.50" | 2.00" | 3.00" | 0.065" | 0.065" |
| B31M-G300250 | - | 3" x 2-1/2" | 2.50" | 2.50" | 3.00" | 0.065" | 0.065" |
| - | B31M-R400200 | 4" x 2" | 8.63" | 2.00" | 4.00" | 0.083" | 0.065" |
| B31M-G400300 | - | 4" x 3" | 4.63" | 3.00" | 4.00" | 0.083" | 0.065" |
| B31M-G600400 | - | 6" x 4" | - | - | - | - | - |
